| Name: | Transformer Coil Winding Machine | Usage: | Winding Coil |
|---|---|---|---|
| Round Wire: | 0.3 - 5.0mm | Flat Wire: | 5x12mm Max. |
| Wire Type: | Copper Or Aluminium Wire | Color: | As Requested |
| Winding Speed: | 90 Rpm | Warranty: | 1 Year |
| Highlight: | automatic coil winding machine 90 rpm,90 rpm auto coil winding machine,aluminium wire automatic coil winding machine |
||
Factory Direct Selling Reasonable Price Automatic Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX1400
Transformer coil winding machine ZPX1400 is one kind of heavy duty winding equipment for winding different specifications of coils. The wound coils can be used in transformers and other similar products. The transformer coil winding machine adopts automatic wire laying technology, which guarantees the wire wound compactly and neatly. The transformer coil winding machine is also provided with a servo motor to drive the wire guide. The winding shaft is driven by one 7.5kw motor, which providing enough torque to wind copper or aluminium wire. One potentiometer on the board is used to adjust the rotating speed of the transformer coil winding machine. The rotating direction of the winding shaft can be switched through the foot pedal. The coloured touch screen is used to provide a user friendly interface to input all the parameters. It is very easy to operate the transformer coil winding machine.
Main features of transformer coil winding machine ZPX1400
Main Components of transformer coil winding machine ZPX1400
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical Parameters of transformer coil winding machine ZPX1400
Typical standard specifications of coil winding machine ZPX1400 are shown below, however these can be easily modified as requested.
| Center Height: | 900mm |
| Shaft Length: | 1700mm |
| Transverse Width: | 1400mm |
| Main Motor Power: | 7.5Kw |
| Winding Speed: | 0-90 rpm |
| Speed Regulation: | Variable frequency and stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | 0.3-5.0mm |
| Max. Rotating OD.: | 1200mm |
| Max. Loading Capacity: | 700kg |
| Spread Pitch: | Min. 0.01mm |
| Counting Mode: | 5-digit counting |
| Max. Numbers of Turns Preset: | 9999.9 |
| Counting Turn Range: | 0 - 9999.9 |

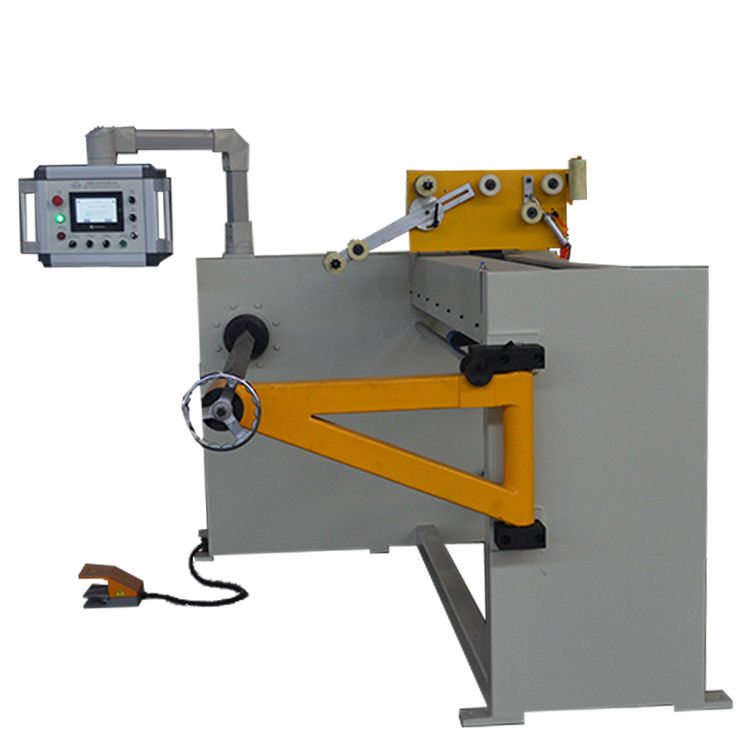

Fig 1: Transformer coil winding machine ZPX1400's front view

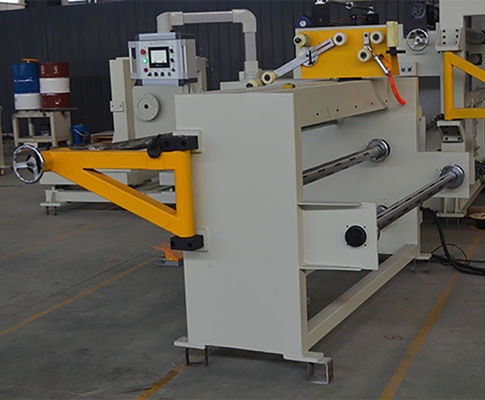

Fig 2: Transformer coil winding machine ZPX1400's triangle support
