Description of copper foil winding machine BRJ800-2-2

Copper foil winding machine BRJ800-2-2 is one model of clamping core foil winding machine, that is to say that the copper or aluminium foil can be wound on the clamped core directly. This kind of foil coil can be used in reactors or other similar products. Two servo motors are used in the machine to drive the iron core, which can guarantee the same torque on the two ends. The copper foil winding machine, Máquina de bobinado de láminas de aluminio, can be used to wind one or two layers of foil and one or two layers of insulation paper. With a touch screen, it is very easy to operate the copper foil winding machine.

Main components of copper foil winding machine BRJ800-2-2

• Main frame: The frame is welded with steel, which is very strong;
• Foil dereeler: Two foil dereelers are used to place foil material;
• Pressing roller: The pressing roller is for pressing;
• Winding unit: Two 5.5kw servo motors are used to drive the clamped core to wind the foil;
• Insulation dereeler: Tow insulation dereelers are used to place insulation paper;
• Edge alignment system: Photoelectric sensor is used to make the edge alignment;
• Automatic welding unit: TIG welding process is used to weld foil and bus bar together, and;
• Electrical Control System: The control system is based on PLC.

Technical parameters of copper foil winding machine BRJ800-2-2

Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below, however, these can be modified as requested.

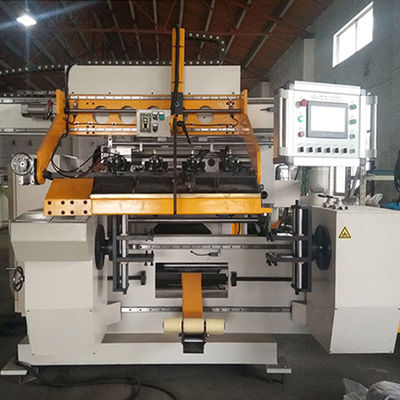

Fig 1: Copper foil winding machine BRJ800-2-2's front view

Fig 2: Copper foil winding machine BRJ800-2-2'S back view
