Description of transformer core stacking table ZPT-3T

Transformer core stacking table ZPT-3T is one kind of amorphous transformer core assembly equipment, which can be used to assemble the amorphous alloy iron core transformer. The stacking table can be used to assembly different sized of oil-immersed type and dry-type amorphous transformers. The equipment changes the traditional assembly processes. Operators just need put a coil on the lifting table of the machine, make the axis of the coil horizontal, and insert every single frame iron core into the inner hole of the coil to complete folding iron cores, wrapping, mounting insulator, and clamping processes, etc. The height of the table working position can be easily adjusted to meet different assembly needs. The transformer core stacking table features easy operation, high effective and so on.

Quick details of transformer core stacking table ZPT-3T

• Working height 850mm
• Hydraulic station
• Linear guide
• Maximum loading capacity 3000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table

Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however, the stacking table can also be manufactured as requested.

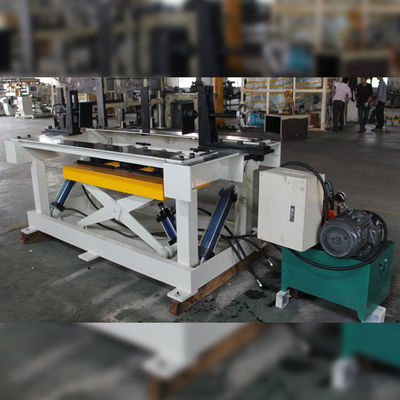

Fig 1: Transformer core stacking table ZPT-3T's full view

Fig 2: Transformer core stacking table ZPT-3T's tilting
