| Product Name: | Copper Foil Winding Machine | Foil Width: | 100 ~ 300mm |
|---|---|---|---|
| Foil Decoiler: | 2 Pcs | Welding Mode: | Cold Pressure Welding |
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Motor Power: | 5.5kw | Winding Speed: | 0 ~ 35rpm |
| Color: | Customized | Warranty: | 12 Months |
| Highlight: | Programmable Reactor Foil Coil Winder,Auto Copper Foil Winding Machine,Copper Foil Coil Winder |
||
Programmable Reactor Foil Coil Winder Automatic Copper Foil Winding Machine
Description of copper foil winding machine BRJ300-2-2
Automatic copper foil winding machine BRJ300-2-2 is a professional winding equipment for winding conductor foil coils. This kind of coils can be served as reactor coils and other similar products. The copper foil winding machine is provided with servo motors, PLC, cold welding unit and so on. With cold welding unit, the copper foil winding machine can weld different material together, for example, welding aluminium foil with copper bus bar together. The copper foil winding machine features slow staring, smooth running, high automation, full function and easy operation etc.
Quick detail of copper foil winding machine BRJ300-2-2
Main components of copper foil winding machine BRJ300-2-2
Technical parameters of copper foil winding machine BRJ300-2-2
Typical standard specifications of copper foil winding machine BRJ300-2-2 are shown below, however the foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 300mm |
| Finished Coil OD. ( excl. Bus bar ): | 500mm |
| Finished Coil OD. ( incl. Bus bar ): | 600mm |
| Conductor Foil Material: | Copper or aluminum |
| Cu Foil Material Thickness: | 0.2 ~ 2.0mm |
| Al Foil Material Thickness: | 0.3 ~ 3.0mm |
| Foil Material ID.: | Ø 500mm |
| Foil Material OD.: | Ø 1000mm, maximum |
| Conductor Decoiler Number: | 2 pcs |
| Conductor Decoiler Length: | 350mm |
| Conductor Decoiler Shaft: | Dia. adjustable range: Ø 420 ~ 520mm |
| Max Coil Weight: | 700kg |
| Rectifying Mode: | Photoelectric sensing |
| Cleaning Unit Control Mode | pneumatic |
| Insulation Paper Decoiler Number: | 2 sets |
| Insulation Paper Coil OD.: | Ø 400mm, maximum |
| Insulation Paper Coil ID.: | Ø 76mm |
| Insulation Decoiler Width | 350mm |
| Insulation Paper Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Winding Speed: | 0 ~ 35 RPM |
| Winding Power of Servo Motor: | 5.5kw |
| Cold Welding Device: | 1 set |
| Counting Range: | 0 ~ 9999.9 |

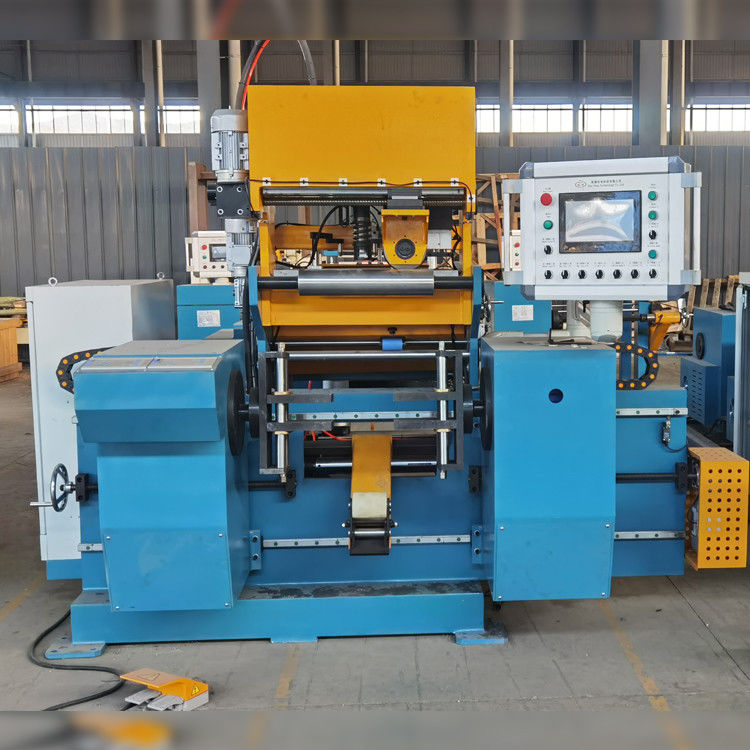

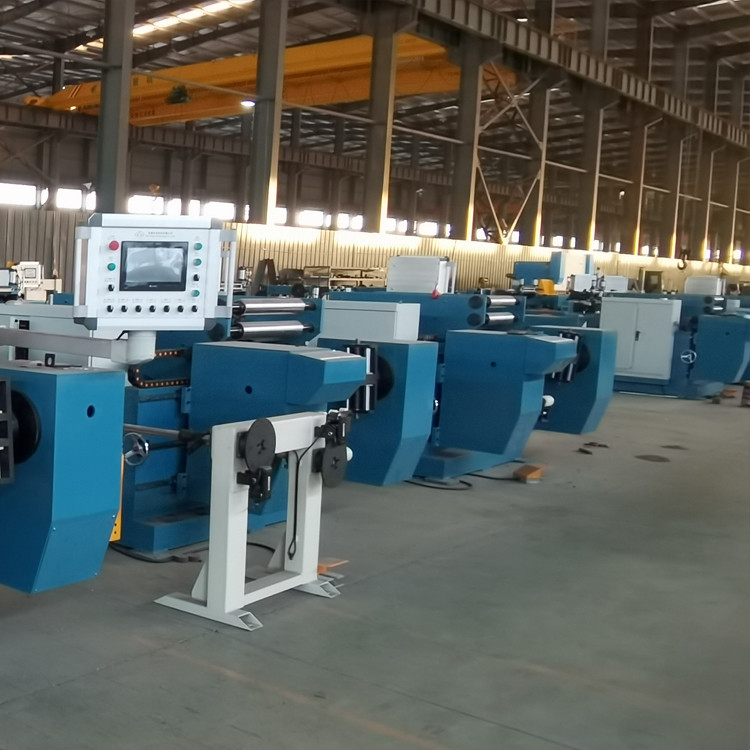

Fig 1: Copper foil winding machine BRJ300-2-2's front view
Fig 2: Copper foil winding machine BRJ300-2-2's cutter
