Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Center Height: | 1000mm | Shaft Size: | 40x40x1500mm |
| Tail Stock: | Live Centre | Color: | Optional |
| Counter: | Digital | Speed: | 0 ~ 80rpm |
| Highlight: | Distribution Transformer Coil Winding Machine,Semi Automatic Copper Wire Coil Winder |
||
Copper Wire Coil Winder Semi Automatic Distribution Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-2T
Transformer coil winding machine GDY-2T is a special equipment for winding wire coils. The transformer coil winding machine can wind flat or round copper wire and aluminium wire. The coil wound by the transformer coil winding machine can be used in transformers or other similar products. The transformer winding machine can wind the coil with maximum weight 2000kg. The transformer coil winding machine is provided with main winding motor, tail stock, counter, foot pedal and so on. The coil winding machine can be operated to stop and run through a foot pedal and also switch the rotating direction through the foot pedal. It is very easy to operate the transformer coil winding machine.
Main features of transformer coil winding machine GDY-2T
Main parameters of transformer coil winding machine GDY-2T
Typical standard specifications of coil winding machine GDY-2T are shown below, however, the transformer coil winding machine can also be manufactured as requested.
| Shaft Height From Floor: | 1000mm |
| Distance Between Ends: | 1500mm |
| Winding Speed: | 0 ~ 80rpm |
| Speed Gear: | 2 pcs |
| Max. Winding Length: | 1200mm |
| Counting Range: | 0 ~ 9999.9 |
| Max. Loading Capacity: | 2000KG |
| Motor Power: | 5.5KW |
| Colour: | optional |
| Machine Dimension(L*W*H): | 2800*700*1400mm |

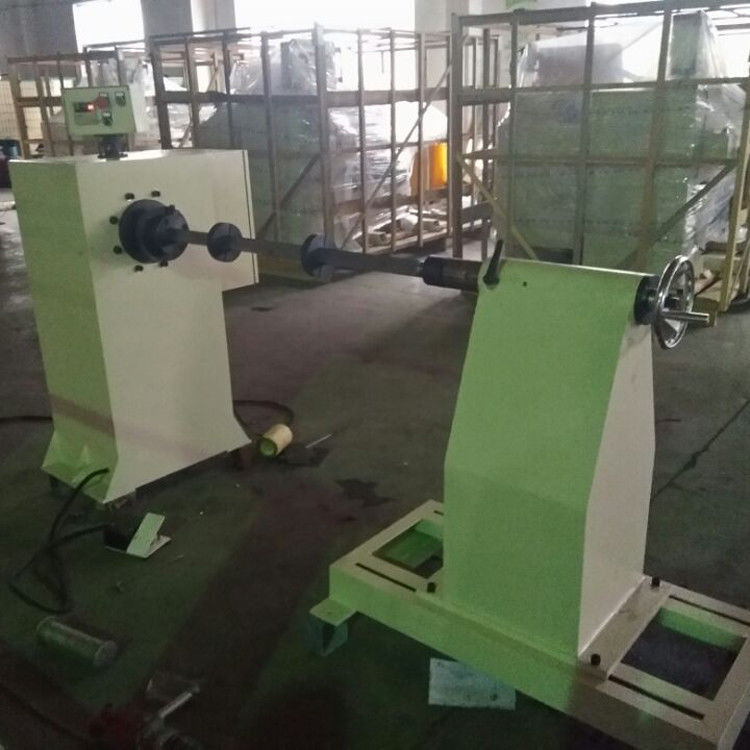

Fig 1: Transformer coil winding machine GDY-2T's full view
Fig 2: Transformer coil winding machine GDY-2T's control board
