Adjustable Lap Amorphous Transformer Core Stacking Table Hydraulic Tilting

Adjustable Lap Core Stacking Table Amorphous Transformer Core Stacking Table

Description of transformer core stacking table ZPT-3T

Transformer core stacking table ZPX-3T is a professional equipment to assemble the amorphous alloy transformer iron core, that is to say the lap core. This kind lap core stacking table can assembly many kinds of oil immersed type and dry type amorphous transformers. Putting coils on the lifting platform of the transformer core stacking table, making the axis of the coil horizontal, inserting every single frame iron core into the inner hole of the coils, wrapping, mounting insulator, and clamping processes, etc to complete folding iron cores. The height of the transformer core stacking table’s working position can be easily adjusted to meet different assembly needs. The transformer core stacking table features easy operation and so on.

Quick details of transformer core stacking table ZPT-3T

• Working height 850mm
• Hydraulic station
• Linear guide
• Maximum capacity 3000kg
• Motor power 2.2kw
• Hydraulic pressure 21MPa

Main Parameters of transformer core stacking table ZPT-3T

Typical standard specifications of transformer core stacking table ZPT-3T are shown below, however the table can also be manufactured as requested.

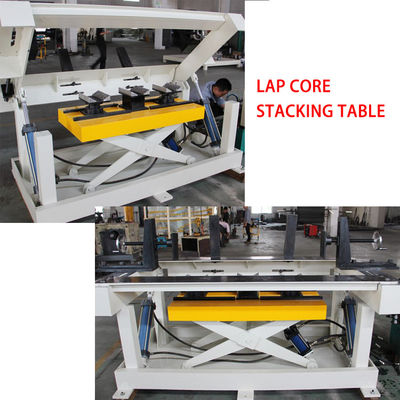

Fig 1: Transformer core stacking table ZPT-3T's full view


Fig 2: Transformer core stacking table ZPT-3T's tilting
