| Name: | Transformer Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Control System: | PLC | Display System: | Touch Screen |
| Max. Width: | 300mm | Speed: | 0 ~ 35rpm |
| Power: | 5.5kw | Warranty: | 1 Year |
| Highlight: | Automatic Winding Machines Sheet Winder,Copper Foil Winding Machines Sheet Winder,Copper Foil Winding Machine Automatic |
||
Automatic Winding Machines Sheet Winder Copper Foil Winding Machine
Description of foil winding machine BRJ300-2
Copper foil winding machine BRJ300-2 is a professional conductor foil winder. This kind of foil winding machine can be used to wind both copper foils and aluminium foils. The wound foil coils can be used in cast resin transformers and other similar products. The copper foil winding machine is provided with TIG welding unit to weld foil and busbar together. The copper foil winding machine can hand one or two layers of foils and handle one or two layers of insulation paper. With PLC control system and HMI, it is very easy to operate the copper foil winding machine.
Main components of copper foil winding machine BRJ300-2
1. Main steel welded frame
2. Two foil decoilers
3. Two foil feeder
4. Pressing roller
5. Winding unit
6. PLC based control system
7. Pneumatic system
8. TIG welding unit
Technical parameters of copper foil winding machine BRJ300-2
Typical standard specifications of copper foil winding machine BRJ300-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 100 ~ 300mm |
| Finished Coil Shape: | Oval, circle and rectangular |
| Conductor Foil Material: | Copper or Aluminum |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler: | 2 pcs |
| Foil Decoiler Length: | 350 mm |
| Foil Decoiler Diameter Range: | Ø400 ~ 520mm |
| Maximum Coil Weight: | 750 KG |
| Pressing Roller: | 2 set |
| Adjusting Speed Mode: | Stepless adjustable |
| Rotating Speed: | 0 ~ 35 rpm |
| Winding Power: | 5.5KW |
| Insulation Decoiler Number: | 2 pcs |
| Insulation Decoiler Length: | 350mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| Programming Type: | PLC |
| Touch Screen: | 10inch (254mm) |
| Counting Range: | 0 ~ 9999.9 |

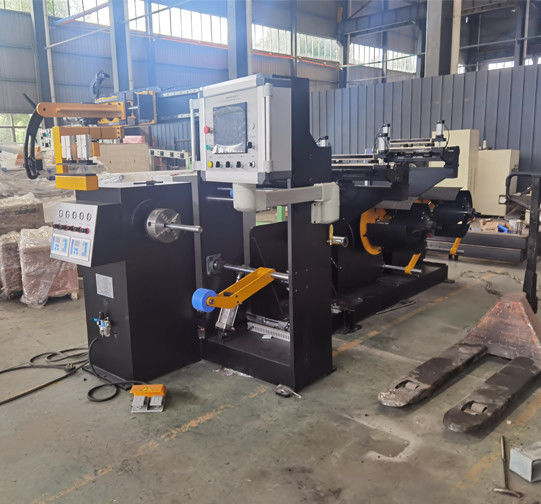

Fig 1: Copper foil winding machine BRJ300-2's front view

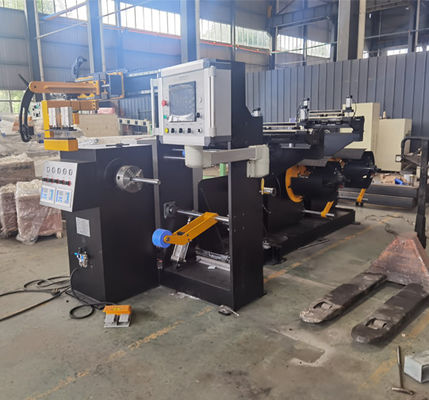

Fig 2: Copper foil winding machine BRJ300-2's insulation decoiler
