Product Details:
Payment & Shipping Terms:
|
| Product Name: | Slitting Line | Function: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Max. Roll Outer Diameter: | Ø1200mm | Roll Inner Diameter: | Ø500mm |
| Sheet Thickness: | 0.15 ~ 0.6mm | Sheet Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Slitting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | Automatic Core Slitting Machine,Silicon Steel Sheet Core Slitting Machine,Automatic Silicon Steel Sheet Core Slitting |
||
Automatic Slitting Silicon Steel Sheet Core Slitting Machine
Quick details of core slitting machine ZJX1250
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a special slitter line, which is for slitting silicon steel sheet to make different widths of silicon steel strips. The slit strip can be cut to different length and shapes to make transformers’ core legs and yokes or other similar products. The core slitting machine is provided with 6 sets of cutters, which can make 5 pieces of strips at one time. However, if needing, cutters can be added to slit more strips at one time. With PLC control system, the slitting machine can be operated very easily.
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 500 - 1250 mm |
| Cutting thickness: | 0.15 - 0.6 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 46 kw |

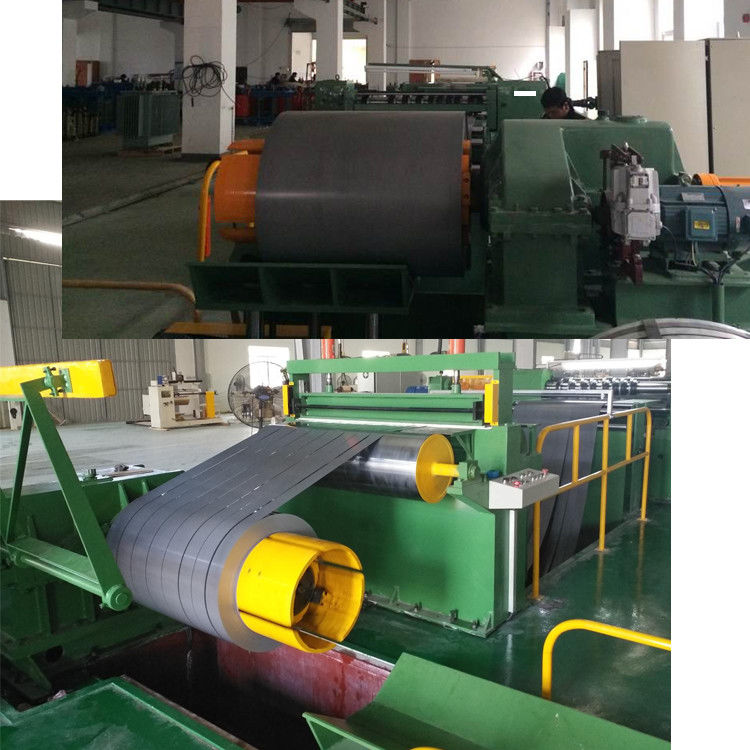

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
