Making Unicore Equipment Silicon Steel Cutting Machine
Introduction of silicon steel cutting machine UCM400
Silicon steel cutting machine UCM400 is a special cutting machine to make rectangle open core for transformer. The silicon steel cutting machine can cut one strip with maximum width 400mm or two strips with maximum width 190mm at once. The unicore made by this kind of cut strip can be used in oil transformers, cast resin transformers and traction transformers with high voltage from 10KV to 35KV and the capacity from 30KVA to 3150KVA. The blades used in the cutting machine are made of cemented carbide.The supply coil dereeler adopts hydraulic expanding for putting and fixing the silicon steel roll easily. The parameters can be enter through a touch scree. The silicon steel cutting machine features easy operation and so on.
Main parts of silicon steel cutting machine UCM400
1. Main machine
2. Single head supply coil dereeler
3. Floor support plate
4. One set of cutter
Main parameters of silicon steel cutting machine UCM400
Typical standard specifications of UCM400 are shown below and the silicon steel cutting machine can also be manufactured as requested.
| Silicon steel sheet width (single) | Maximum 400mm |
| Silicon steel sheet width (double) | Maximum 190mm |
| Cutting speed | adjustable |
| Bending angle of silicon steel sheet | 45° |
| Supply coil dereeler | Hydraulic expanding |
| Supply coil dereeler expanding range | Φ450mm ～ Φ510mm |
| Supply coil dereeler capacity | 1000kg |
| Silicon steel roll inner diameter | Φ500mm |
| Silicon steel roll outer diameter | Φ1000mm maximum |
| Power Supply | 380V 50Hz |
| Power | 6kw |
| Machine dimension(LxWxH): | 7000×1800×1500mm |

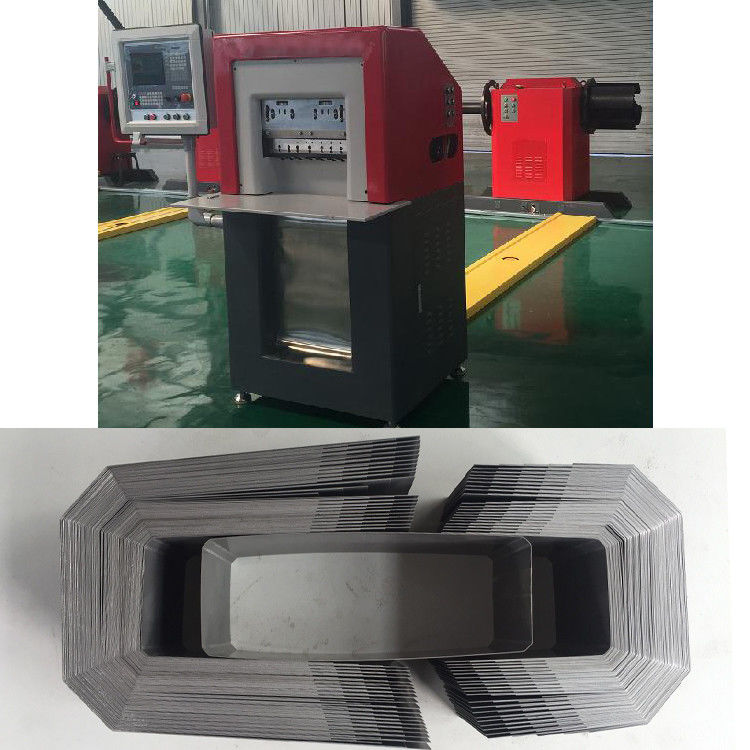

Fig 1: Silicon steel cutting machine UCM400's full view
Fig 2: Silicon steel cutting machine UCM400's cut product
