| Product Name: | Transformer Core Stacking Table | Usage: | Stacking Silicon Steel Sheet |
|---|---|---|---|
| Platform Size: | 1500x1200mm | Platform Height: | 1000mm |
| Max. Capacity: | 3000kg | Tilting Mode: | Hydraulic |
| Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Iron Core Transformer Core Stacking Table,Hydraulic Driven Transformer Core Stacking Table,Tilting Transformer Core Stacking Table |
||
Hydraulic Driven Tilting Transformer Iron Core Stacking Table
Description of transformer core stacking table FZT-3T
Transformer core stacking table FZT-3T is a kind of transformer core assembly equipment, which is mainly used to stack transformer iron core. After the core stacked, the transformer core stacking table can flip up the stacked core up to 90° for taking the stacked iron core away from the stacking table easily. The transformer core stacking table adopts hydraulic driving for tilting and the tilting speed can be adjusted. With a hand held controller, the transformer core stacking table is very easily operated.
Quick details of transformer core stacking table FZT-3T
Main components of transformer core stacking table FZT-3T
Main Parameters of transformer core stacking table FZT-3T
Typical standard specifications of transformer core stacking table FZT-3T are shown below and the transformer core stacking table can also be manufactured as requested.
| No. | Item | FZT-3T |
| 1 | Table Size(LxW): | 1500×1200mm |
| 2 | Table Height: | 1000mm |
| 3 | Max. Capacity: | 3000Kg |
| 4 | Max. Stacking Thickness: | 900mm |
| 5 | Tilting Mode: | Hydraulic |
| 6 | Tilting Speed: | 90°/Min(Stepless speed regulating) |
| 7 | Distance Between Columns: | Adjustable |
| 8 | Main Power: | 2.2KW |
| 9 | Warranty: | 12 months |

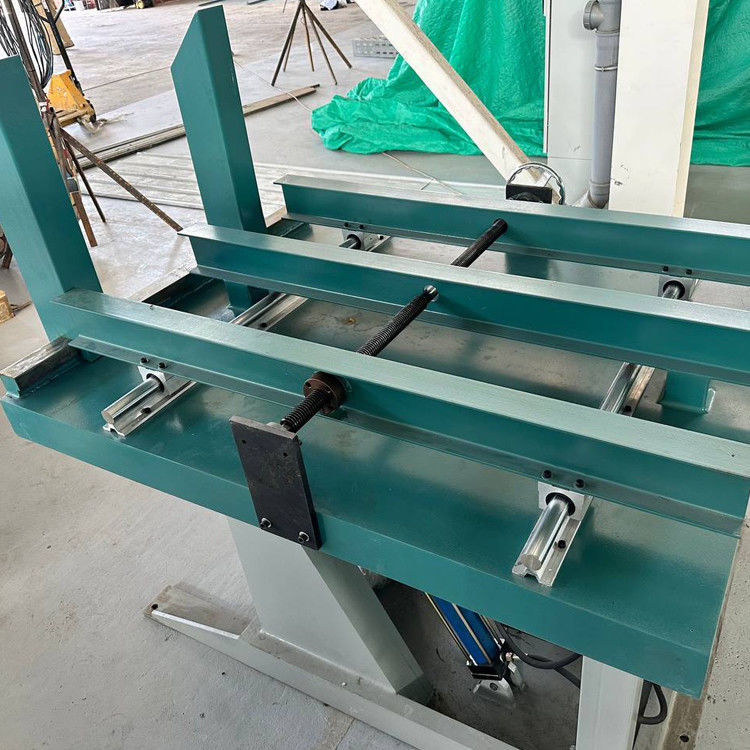

Fig 1: Transformer core stacking table FZT-3T's full view
Fig 2: Transformer core stacking table FZT-3T's hand wheel
