| Product Name: | Lap Core Stacking Table | Function: | Stacking Silicon Steel Sheet |
|---|---|---|---|
| Working Height: | 850mm | Max Capacity: | 5000kg |
| Max Platform Stroke: | 500mm | Warranty: | 12 Months |
| Color: | As Requested | Motor Power: | 2.2kw |
| Highlight: | Adjustable Lap Core Stacking Table,Amorphous Transformer Core Stacking Table,Lap Core Stacking Table |
||
Adjustable Lap Core Stacking Table Amorphous Transformer Core Stacking Table
Description of transformer core stacking table ZPT-5T
Transformer core stacking table ZPT-5T is a special stacking equipment to stack lap cores. This kind of stacked core can be used in amorphous transformer and other similar products. The transformer core stacking table is driven by a hydraulic station for lifting and fliping up the stacked core. The transformer core stacking table is controlled through a hand held controller. It is very easy to operate the stacking table.
Quick details of transformer core stacking table ZPT-5T
Main Parameters of transformer core stacking table ZPT-5T
Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.
| Working Height: | 850mm |
| Applicable Product Size: |
L:1500 ~ 2200mm W:360 ~ 1000mm H:400 ~ 900 |
| Lifting Platform Capacity (rated): | 5000Kg |
| Lifting Platform Stroke: | 500mm |
| Lifting Speed: | 40mm/s |
| Total Power: | 2.2Kw |
| Total Weight | 1500Kg |
| Applicable Transformer capacity: | 30KVA-2000KVA |
| Rotating Angle: | 90° |
| Hydraulic Working Pressure: | 21MPa |

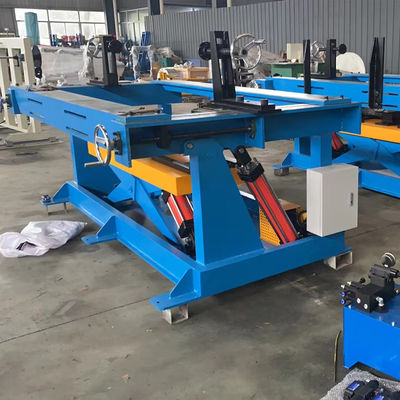

Fig 1: Transformer core stacking table ZPT-5T's full view
Fig 2: Transformer core stacking table ZPT-5T's tilting
