| Name: | Automatic Coil Winding Machine | Usage: | Making Coil |
|---|---|---|---|
| Motor Power: | 4kw | Winding Speed: | 0 ~ 200rpm |
| Conductor: | Cu Wire Or Al Wire | Wire Type: | Flat Or Round Wire |
| Control System: | PLC | Warranty: | 12 Months |
| Highlight: | Automatic Transformer Coil Winding Machine,Automatic Wire Coiling Machine,Electric Wire Coil Winding Machine |
||
Electric Wire Coiling Machine Automatic Transformer Coil Winding Machine
Introduction of automatic coil winding machine ZPX600
Automatic coil winding machine ZPX600 is a professional winding equipment. The automatic coil winding machine is mainly used to wind transformer coils and other similar products. With two sets of wire guides, the automatic coil winding machine can wind two wire coils at the same time. The automatic coil winding machine can wind both round wire and flat wire. With PLC control system, the automatic coil winding machine can wind wire automatically after the relevant parameters are input. The automatic coil winding machine is provided with servo motor to drive the wire guide, which guarantees the movement precision of the wire guide. The automatic coil winding machine features slow starting, smooth running, high automation, big torque and so on
Main features of automatic coil winding machine ZPX600
Main parameters of automatic coil winding machine ZPX600
The typical stand specifications of automatic coil winding machine ZPX600 is as following, however, the coil winding machine can also be manufactured as requested.
| Center height: | 900mm |
| Square Shaft Size: | 40x40x900mm |
| Max Winding Width: | 600mm |
| Servo Motor Power: | 0.75kw |
| Winding Speed: | 0 ~ 200 rpm |
| Speed Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire: | Ø0.3mm ~ Ø5.0mm |
| Max Finished Coil OD.: | Ø400mm |
| Max Capacity: | 200kg |
| Automatic Wire Laying Function: | Min. spread pitch 0.01mm |
| Counter: | 5-digit counting |
| Max Preset Turns: | 9999.9 |
| Counting Range: | 0 ~ 9999.9 |

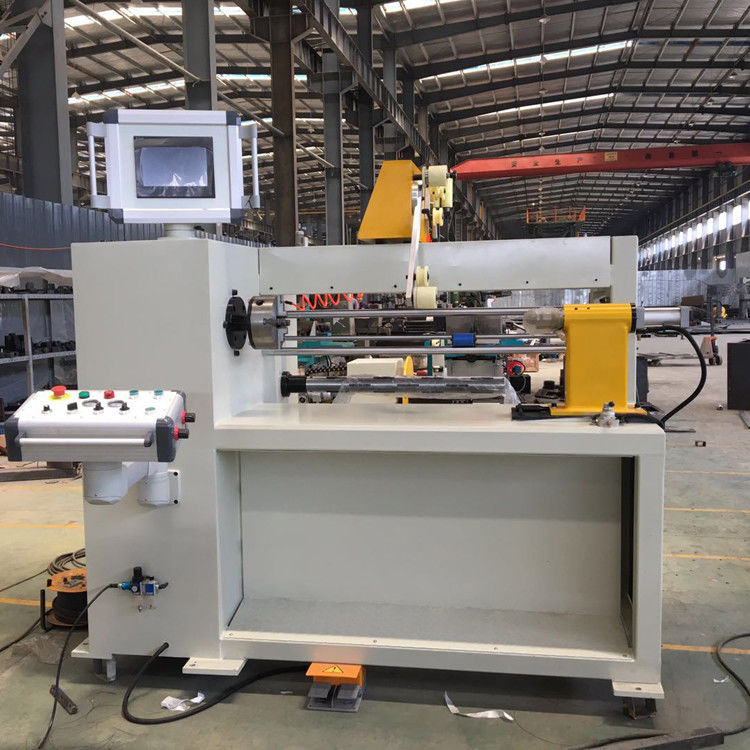

Fig 1: Automatic coil winding machine ZPX600's front view
Fig 2: Automatic coil winding machine ZPX600's wire guide
