Description of transformer core stacking table FZT-5T

Transformer core stacking table FZT-5T is a special stacking equipment. The transformer core stacking table is mainly used to stack silicon steel sheet to make transformer core. The transformer core stacking table can both stack the core and tilt stacked cor for easy moving the stacked core from the table. With a hydraulic station, the transformer core stacking table can tilt the stacked core. The speed of the tilting can be adjusted. The transformer core stacking table features easy operation and so on.

Quick details of transformer core stacking table FZT-5T

• The table size:2000x1600mm
• Table height:1000mm
• Maximum capacity:5000kg
• Maximum thickness of stacking: 600mm
• Power: 3kw
• Color: optional

Main Components of transformer core stacking table FZT-5T

• Main frame
• Hydraulic station
• Linear guide
• Control panel
• Cylinder
• Motor

Main Parameters of transformer core stacking table FZT-5T

Typical standard specifications of transformer core stacking table FZT-5T are shown below and the stacking table can also be manufactured as requested.

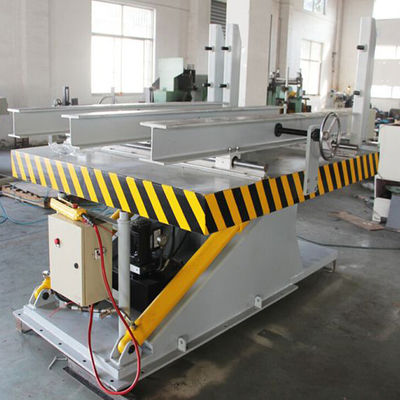

Fig 1: Transformer core stacking table FZT-5T's full view


Fig 2: Transformer core stacking table FZT-5T's tilting stacked core
