| Product Name: | Corrugated Fin Making Machine | Sheet Width: | 300 ~ 1600mm |
|---|---|---|---|
| Fin Height: | 50 ~ 400mm | Fin Pitch: | 45 ~ 60mm |
| Max. Fin Length: | 2000mm | Machine Color: | As Requested |
| Oil Groove: | 4mm | Welding Machine: | 2 Sets |
| Highlight: | Radiator Corrugated Fin Forming Machine,Special Corrugated Fin Forming Machine,corrugated fin forming machine Equipment |
||
Transformer Oil Tank Radiator Corrugated Fin Forming Machine
Description of corrugated fin forming machine BWX1600-400
Corrugated fin forming machine BWX1600-400 is a special equipment for corrugate a sheet plate to make a radiator for transformer oil tank and other similar products. The full set of corrugated fin making machine includes corrugated fin making machine, automatic corrugated fin welding machine, hydraulic decoiler and industrial oil cooler.
Main components of corrugated fin forming machine BWX1600-400
1. Corrugated fin forming machine
2. Welding machine
3. Decoiler
4. Oil cooler
Quick details of corrugated fin forming machine BWX1600-400
Main parameters of corrugated fin forming machine BWX1600-400
Typical standard specifications of corrugated fin forming machine BWX1600-400 are shown below and the fin forming machine can also be manufactured as requested.
| Steel Plate Width: | 300 ~ 1600mm |
| Steel Plate Thickness: | 0.5 ~ 1.75mm |
| Corrugated Fin Height: | 50 ~ 400mm |
| Corrugated Fin Pitch: | 45 ~ 60mm |
| Corrugated Fin Length | 2000mm, maximum |
| Fin Gap (oil groove): | 4mm |
| Corrugated Fin Front Section Length: | ≥30mm |
| Corrugated Fin Back Section Length: | ≥30mm |
| Molding speed: | 3 ~ 4 fins/min |
| Total Weight: | 16000KG |
| Floor Space: | 9m x 7m |
| Total Motor Power: | 32kw |

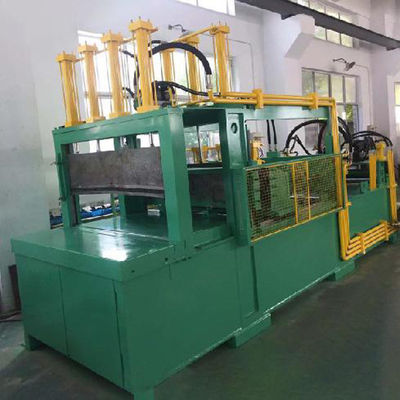

Fig 1: Corrugated fin forming machine BWX1600-400's forming unit
Fig 2: Corrugated fin forming machine BWX1600-400's welding machine
