Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Coil Winding Machine | Usage: | Winding Transformer Coil |
|---|---|---|---|
| Max Winding Width: | 600mm | Center Height: | 900mm |
| Motor Power: | 4kw | Rotating Speed: | 0 ~ 200rpm |
| Wire Guide: | Servo Driven | Warranty: | 12 Months |
| Highlight: | HV Transformer Coil Winding Machine,Automatic Transformer Coil Winding Machine,HV automatic transformer winding machine |
||
Automatic HV Winder Transformer Coil Winding Machine
Introduction of transformer coil winding machine ZPX600
Transformer coil winding machine ZPX600 is one kind of special copper or aluminium wire winders. The transformer coil winding machine is mainly used to wind wire coil and this kind of coil can be used to make transformer or other similar products. With a 4kw winding motor, the transformer coil winding machine has a enough torque to wind different size of wire.The transformer coil winding machine is provided with a servo motor to drive the wire guide, which guarantees the precision of the wire guide moving. With PLC, the transformer coil winding machine can be operated easily.
Main features of transformer coil winding machine ZPX600
Main parameters of transformer coil winding machine ZPX600
The standard specification of transformer coil winding machine ZPX600 are as following, however, the coil winding machine can also be manufactured as requested.
| Winding Shaft Center Height From Floor: | 900mm |
| Winding Shaft Size: | 40x40x900mm |
| Max Winding Width: | 600mm. |
| Winding Motor Power: | 4kw |
| Max. Winding Speed: | 200rpm |
| Speed Regulation: | stepless speed regulation |
| Round Wire: | Φ0.3 ~ Φ3.0mm |
| Max. Rotating Diameter: | Φ600mm |
| Max. Loading Capacity: | 500kg |
| Counting Mode: | 5-digit counting |
| Counting Range: | 0 - 9999.9 |

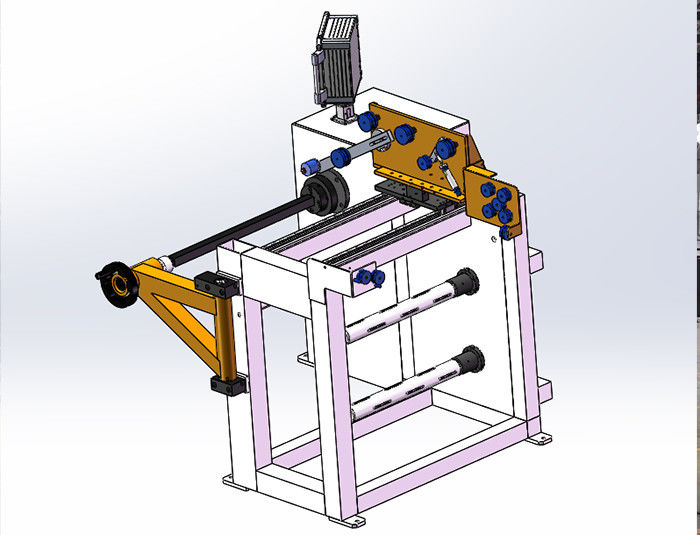

Fig 1: Transformer coil winding machine ZPX600's full view
Fig 2: Transformer coil winding machine ZPX600's winding guide
