| Name: | Transformer Core Stacking Table | Working Height: | 1000mm |
|---|---|---|---|
| Power: | 1.5kw | Stacking Height: | 400mm |
| Color: | As Requested | Warranty Period: | 12 Months |
| Max. Capacity: | 1000kg | Tilting: | Hydraulic |
| Highlight: | Laminating Iron Core Stacking Table,Iron Core Stacking Table,Laminating Iron Core Transformer Stacking Table |
||
Laminating Iron Core Transformer Core Stacking Table
Description of transformer core stacking table FZT-1T
Transformer core stacking table is a special equipment for laminating transformer iron core. With a hydraulic staion, the transformer core stacking table can tilt the stacked core up to 90° for taking it away from the table easily. The transformer core stacking table can be easily operated with a hand held controller.
Quick details of transformer core stacking table FZT-1T
Main components of transformer core stacking table FZT-1T
1. Main frame
2. Hydraulic station
3. Linear guide
Main parameters of transformer core stacking table FZT-1T
Typical standard specifications of transformer core stacking table FZT-1T are shown below, however the machine can also be manufactured as requested.
| Platform Size: | 1300×1000mm |
| Max Load Capacity: | 1000Kg |
| Stacked Accuracy: | 0.1 ~ 0.2mm |
| Table Height: | 1000mm |
| Driven Mode: | Hydraulic |
| Main Power: | 1.5KW |
| Max. Iron Core Thickness: | 400mm |
| Tilting Speed: | 90°/Min(Stepless speed regulating) |
| Distance Between Columns: | Adjustable |

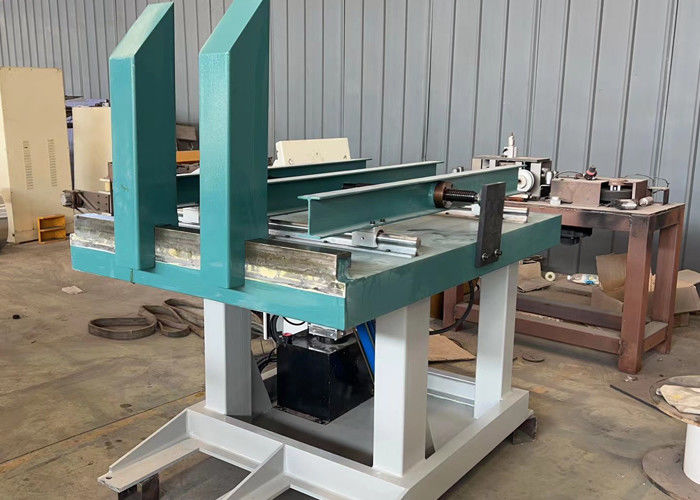

Fig 1: Transformer core stacking table FZT-1T's full view
Fig 2: Transformer core stacking table FZT-1T's hydraulic station
