| Name: | Slitting Line | Usage: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Max. Roll Outer Diameter: | Ø1200mm | Roll Inner Diameter: | Ø500mm |
| Sheet Thickness: | 0.23 ~ 0.5mm | Sheet Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Slitting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | Silicon Steel Sheet Core Slitting Machine,Silicon Steel Automatic Core Slitting Machine |
||
Automatic Slitting Silicon Steel Sheet Equipment Core Slitting Machine
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a special slitter for slitting silicon steel sheet, which can be used to make different widths of silicon steel strips. This kind of strips can be cut to different lengths and shapes to make transformer core’s legs and yokes or other similar products. The core slitting machine can slitter the silicon steel sheet with maximum width 1200mm. With 6 sets of cutter, the core slitting machine can make five pieces of strips at one time. Moreover, if needing, cutters can be added to slit more strips at one time. The slitting machine features easy operation and so on.
Quick details of core slitting machine ZJX1250:
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 40 - 1200 mm |
| Cutting thickness: | 0.23 - 0.5 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 55 kw |

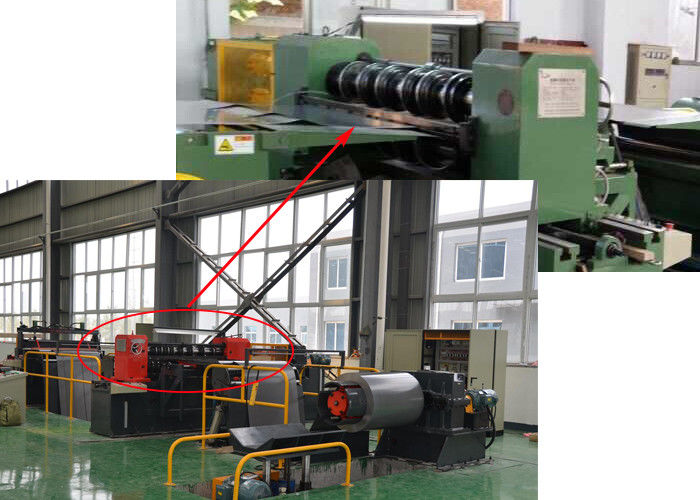

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
