Product Details:
Payment & Shipping Terms:
|
| Name: | Core Cutting Machines | Function: | Making Transformer Center Post |
|---|---|---|---|
| Strip Width: | 40 ~ 400mm | Strip Thickness: | 0.23 ~ 0.35mm |
| Cutting Speed: | 0 ~ 180m/min | Machine Power: | 14kw |
| Machine Color: | As Requested | Machine Warranty: | 12 Months |
| Highlight: | Factory Direct Sales Core Cutting Machine,Silicon Steel Strip Cutter,Silicon Steel Automatic Core Cutting Machine |
||
Factory Direct Sales Silicon Steel Strip Cutter Core Cutting Machine
Description of core cutting machine ZZ400
Automatic core cutting machine ZZ400 is a professional equipment, which is mainly used to cut silicon steel strip to make center legs of transformer cores. The silicon steel strip with thickness from 0.2mm to 0.35mm and the maximum width 400mm can be cut with this model of core cutting machine. One decoiler with maximum capacity 1500kg is provided for placing silicon steel coil with inner diameter 500mm. The feeding speed of the core cutting machine can be adjusted and the maximum feeding speed is 180 meters per minute. With one 14kw motor, the core cutting machine can provide big pulling force. It is very easy to operate the core cutting machine.
Quick details of automatic core cutting machine ZZ400
Technical parameters of automatic core cutting machine ZZ400
Typical standard specifications of the cutting machine ZZ400 are shown below, however the cutting machine can also be manufactured as requested.
| Roll Material Width Tolerance: | ≤±0.1mm |
| Cutting Burr Length: | ≤0.02mm |
| Silicon Steel Thickness: | 0.2 ~ 0.35mm |
| Silicon Steel Width: | 40 ~ 400mm |
| Cutting Length: | 150 ~ 2500mm |
| Feeding Speed: | 0 ~ 180m/min |
| Motor Power: | 14Kw |

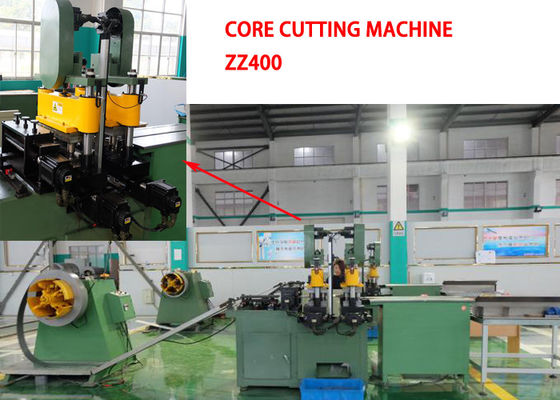

Fig 1: Core cutting machine ZZ400's full view
Fig 2: Core cutting machine ZZ400's cutter unit
