Automatic Film Foil Winder Machine Dry Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1200-2
Transformer foil winding machine is a special film foil winding machine, which can be used to wind both copper foil and aluminium foil. These wound foil coils can be used in dry type transformer or other similar products. This kind of transformer foil winding machine is provided with two foil decoilers, which makes the foil winding machine wind one or two layers of foil at once. With PLC control system and HMI, the transformer foil winding machine features easy operation, high automation and so on.
Main components of transformer foil winding machine BRJ1200-2
Technical parameters of transformer foil winding machine BRJ1200-2
Typical standard specifications of transformer foil winding machine BRJ1200-2 are shown below and the transformer foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,200mm |
| Max. Finished Coil OD: | Φ1,000mm |
| Finished Coil Shape: | oval, circle and rectangular |
| Conductor Foil Material: | Copper or Aluminum |
| Foil Thickness Min. and Max. (Aluminum): | 0.3 ~ 3.0 mm |
| Foil Thickness Min. and Max. (Copper): | 0.2 ~ 2.0 mm |
| Conductor Foil Material OD.: | Φ1,000mm |
| Conductor Foil Material ID.: | Φ500mm |
| Winding Power: | 15KW |
| Winding speed: | 0 ~ 20 rpm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing automatic rectifying deviation |
| User Interface: | 10inch (254mm) touch screen |
| Counting Range: | 0 ~ 9999.9 |

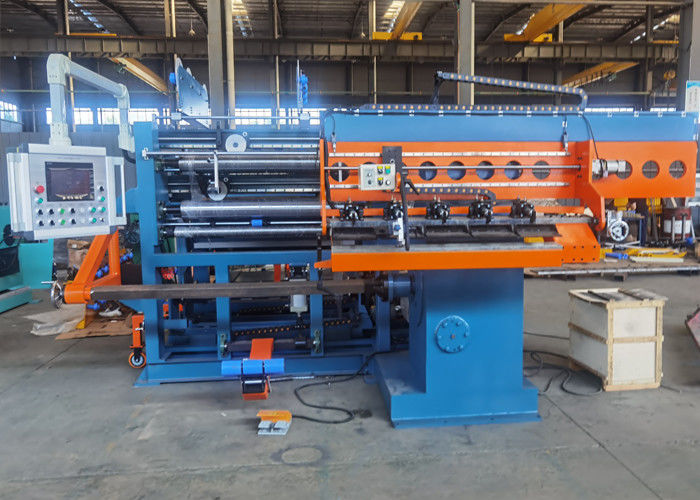

FIG 1: Transfomer foil winding machine's side view
Fig 2: Transformer foil winding machine BRJ1200-2's back view
