| Name: | Transformer Foil Winding Machine | Usage: | Winding Film Foil |
|---|---|---|---|
| Winding Power: | 22kw | Winding Speed: | 0 ~ 18 Rpm |
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Deburring Unit: | 2 Sets | Warranty: | 12 Months |
| Highlight: | Transformer Foil Winding Machine,Low Voltage Foil Winding Machine,Cast Resin Foil Winding Machine |
||
Foil Film Winder Low Voltage Cast Resin Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1400-2
Transformer foil winding machine BRJ1400-2 is a professional foil film winding equipment. The transformer foil winding machine can wind conductor foil film to make foil coils. This kind wound coils can be used in cast resin transformers or other similar products. The foil winding machine is provided with two foil decoilers and two insulation decoilers, which makes the transformer foil winding machine wind one or two layers of foil conductor and wind one or two layers of insulation paper at once. With TIG welding unit, the transformer foil winding machine can weld foil and bus bar together. With PLC control system and HMI, the transformer foil winding machine can be operated easily.
Main components of transformer foil winding machine BRJ1400-2
1. Main frame
2. Winding unit
3. Foil decoiler
4. Insulation decoiler
5. End-filling strip feeder
6. Cleaning system
7. Cutting system
8. Foil deburring system
9. Edge alignment system
10. Automatic welding unit
11. Electronic control system
12. Pneumatic system
Technical parameters of transformer foil winding machine BRJ1400-2
Typical standard specifications of transformer foil winding machine BRJ1400-2 are shown below, however, the transformer foil winding machine can also be manufactured as requested.
| Maximum Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Maximum Conductor Material OD.: | Φ1,000mm |
| Conductor Material ID.: | Φ500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Expanding Range: | Φ480 ~ 520mm |
| Max. Coil Weight: | 2,500KG |
| Winding Mandrel Size: | 80×80×1750 mm |
| Welding Mode: | TIG |
| Cutting Mode: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Φ400mm |
| Insulation Material ID.: | Φ76mm |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| Counting Range: | 0 - 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(LxWxH) | 5800x2850x2500mm |

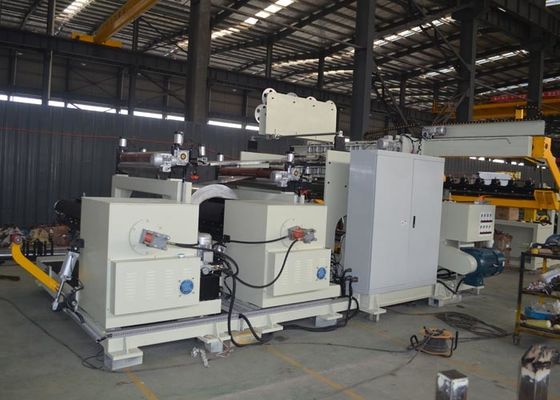

Fig 1: Transformer foil winding machine BRJ1400-2's front view
Fig 2: Transformer foil winding machine BRJ1400-2's back view
