| Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Winding Width: | 800mm, Maximum | Winding Speed: | 0 ~ 160rpm |
| Control System: | PLC | Warranty Period: | 12 Months |
| Motor Power: | 4kw | Color: | As Requested |
| Highlight: | Copper Wire Transformer Coil Winding Machine,Automatic Coil Winding Machine,Automatic Transformer Coil Winding Machine |
||
Automatic Copper Wire Winder Machine Transformer Coil Winding Machine
Description of transformer coil winding machine ZPX800
Transformer coil winding machine ZPX800 is a special winder, which is mainly used to wind copper wire or aluminium wire. The wound coils wound with transformer coil winding machine can be used in transformers or other similar products. The transformer coil winding machine is provided with a wire guide and the wire guide is driven by a servo motor, which guarantees the wire guide to move precisely. The coil winding machine is provided with a foot pedal and the foot pedal can be used to run the machine and switch the rotation direction. With HMI and PLC control system, the transformer coil winding machine can be operated easily.
Main features of transformer coil winding machine ZPX800
Main parameters of transformer coil winding machine ZPX800
The standard specification of transformer coil winding machine ZPX800 are as following and the coil winding machine can also be manufactured as requested.
| Center height: | 900mm |
| Winding Shaft Size: | 40x40x1100mm |
| Shaft mounting mode: | Welding on flange |
| Max. Transverse Length: | 800mm |
| Winding Motor Power: | 4kw |
| Winding Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Ø0.3 ~ 5.0mm |
| Max. Wound Coil OD.: | Ø800mm |
| Max. Capacity: | 700kg |
| Counting Mode: | 5-digit counting |
| Counting Range: | 0 ~ 9999.9 |

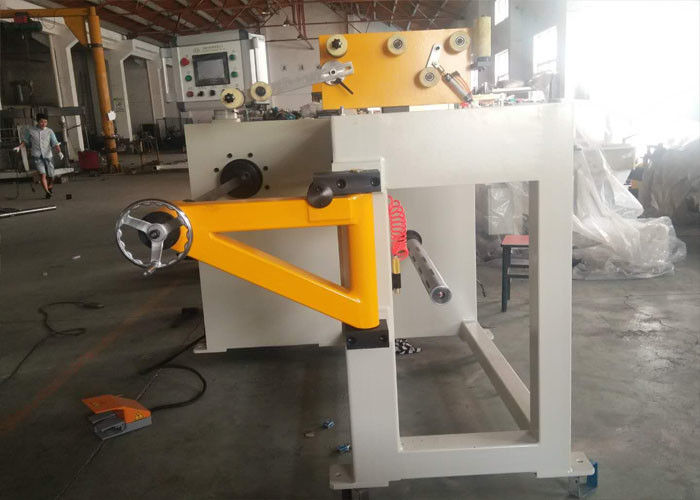

Fig 1: Transformer coil winding macihne's front view
Fig 2:Transformer coil winding machine's wire guide
