| Name: | Foil Winding Machine | Function: | Winding Foil Coils |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 - 2.0mm | Al Foil Thickness: | 0.3 - 3.0mm |
| Welding Method: | TIG Welding | Winding Speed: | 0-20 Rpm |
| Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Film Copper Foil Winding Machine,Film Foil Winding Machine,Advanced Copper Foil Winding Machine |
||
Film Foil Machine Copper Foil Winding Machine
Description of copper foil winding machine BRJ800-2
Copper foil winding machine is a kind of professional foil conductor winder, which is mainly used to wind different sizes of foil coils. These wound foil coils can be used in cast resin transformers and other similar products. With two foil decoilers and two insulation decoilers, this kind of copper foil winding machine can wind one or two layers of copper foil or aluminium foil and one or two layers of insulation paper at once. The copper foil winding machine is provided with TIG welding unit for welding foil and bus bar together. With a touch screen and PLC control system, the copper foil winding machine can be operated easily. The foot pedal can be used to run and stop the machine and switching the rotating direction can also be achieved through the foot pedal.
Quick details of copper foil winding machine BRJ800-2
Technical parameters of copper foil winding machine BRJ800-2
Typical standard specifications of copper foil winding machine BRJ800-2 are shown below and the machine can also be manufactured as requested.
| Foil width: | 200 ~ 800mm |
| Max. OD. of Wound Coil: | 800mm |
| Wound Coil Shape: | oval, circle and rectangular,etc. |
| Conductor Foil Material OD.: | 1,000mm |
| Conductor Foil Material ID.: | 500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Diameter: | Adjustable range 400-520mm |
| Winding Mandrel Size: | 80×80×1150 mm |
| Welding Mode: | TIG |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material Width: | 850mm |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 6 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

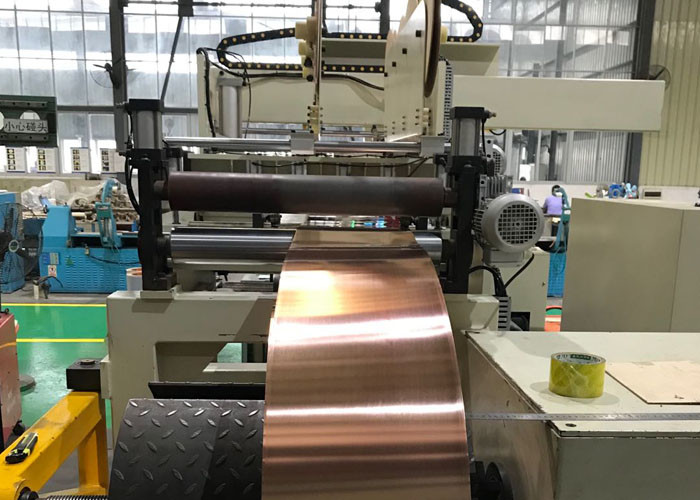

Fig 1: Copper foil winding machine BRJ800-2's front view
Fig 2: Copper foil winding machine BRJ800-2's foil decoiler
