| Name: | Automatic Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Conductor: | Copper Or Aluminium Wires | Machine Color: | Optional |
| Round Wire Size: | Φ0.3 ~ 5.0mm | Max Flat Wire: | 5x12mm |
| Winding Power: | 7.5kw | Winding Speed: | 0 ~ 60rpm |
| Highlight: | Transformer Wire Coil Winder,Automatic Coil Winding Machine,Coil Winding Machine |
||
Transformer Wire Coil Winder Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX1400
Automatic coil winding machine ZPX1400 is a professional winding equipment. This kind of coil winding machine is mainly used to wind various sizes of wires to make wire coils. The wound coils can be used in transformers and other similar products. The automatic coil winding machine’s winding speed can be adjusted through a potentiometer. This kind of automatic coil winding machine can wind both copper wires and aluminium wires. With PLC control system and HMI, the automatic coil winding machine can be operated easily. The automatic coil winding machine features slow starting, smooth running and high automation etc.
Main features of automatic coil winding machine ZPX1400
Technical parameters of automatic coil winding machine ZPX1400
Typical standard specifications of automatic coil winding machine ZPX1400 are shown below and the machine can also be manufactured as requested.
| Center Height: | 900mm |
| Winding Shaft Size: | 50x50x1700mm |
| Insulation Decoiler Quantity: | 1 pc |
| Winding Power: | 7.5Kw |
| Winding Speed: | 0 ~ 60 Rpm |
| Speed Regulation: | stepless speed regulation |
| Maximum Rectangular Wire Size: | 5x14mm |
| Round Wire Diameter: | Φ0.3 ~ 5.0mm |
| Maximum Wound Coil Height: | 1400mm |
| Maximum Coil Weight: | 1000kg |
| Counting Mode: | 5-digit counting |
| Max. Turns Preset Number: | 9999.9 |
| Counting Range: | 0 ～ 9999.9 |

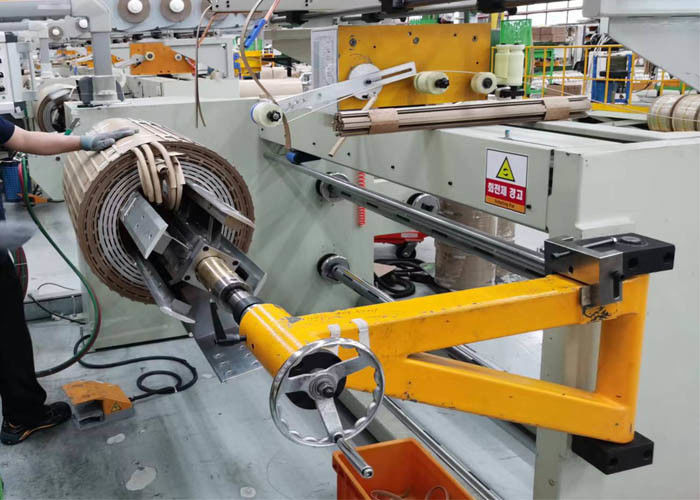

Fig 1: Automatic coil winding machine ZPX1400's front view
Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler
