| Product Name: | Core Slitting Machine | Function: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Max. Roll Outer Diameter: | Ø1200mm | Roll Inner Diameter: | Ø500mm |
| Slitting Thickness: | 0.23 ~ 0.5mm | Slitting Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Slitting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | Slitter Core Slitting Machine,Factory Direct Sales Core Slitting Machine,Silicon Steel Core Slitting Machine |
||
Factory Direct Sales Silicon Steel Slitter Core Slitting Machine
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a professional cutter for slitting silicon steel sheet. The core slitting machine can be used to slit different widths of silicon steel strips. The maximum width of the slit silicon steel can be 1200mm. The slit strips can be used to make transformer core’s legs and yokes or other similar products. The core slitting machine is provided with 6 sets of cutters, that is to say, the core slitting machine can slit five pieces of strips at one time. Moreover, if needing, cutters can be added to slit more strips at one time. The slitting machine features easy operation and so on.
Quick details of core slitting machine ZJX1250:
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 40 - 1200 mm |
| Cutting thickness: | 0.23 - 0.5 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 55 kw |

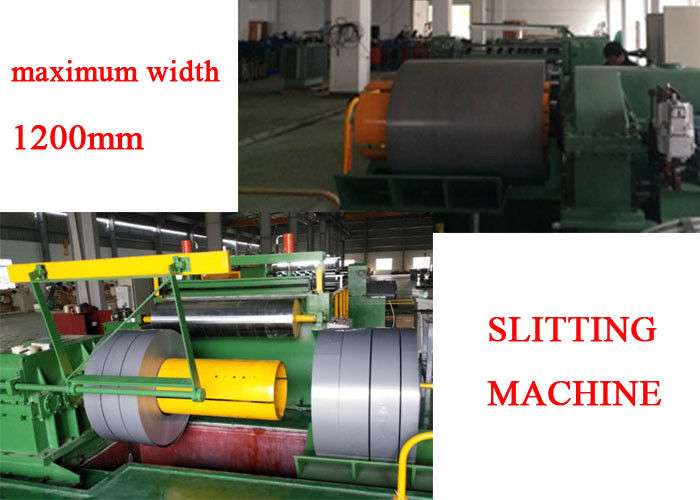

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
