| Name: | Transformer Coil Winding Machine | Display: | Digital |
|---|---|---|---|
| Usage: | Winding Wire Coil | Winding Power: | 7.5KW |
| Operation Mode: | Semi Automatic | Power Supply: | 3-phase 380V 50Hz |
| Winding Speed: | 0 ~ 40rpm | Warranty Period: | 12 Months |
| Highlight: | 7.5kw Transformer Coil Winding Machine,Motor Driven Transformer Coil Winding Machine,Semi Automatic Transformer Coil Winding Machine |
||
Semi Automatic Transformer Coil Winding Machine 7.5kw Motor Driven
Description of transformer coil winding machine GDY-3T
Transformer coil winding machine GDY-3T is one kind of semi automatic coil winding machine. The transformer coil winding machine can wind both copper wire and aluminium wire. These wound coils can be used to manufacture transformers and other similar products. With a digital counter, the transformer coil winding machine can count the turns when winding. The transformer coil winding machine is provided with a 7.5kw winding motor, which makes the coil winding machine wind big sized coils. The transformer coil winding machine is also provided with a foot pedal and the foot pedal can run and stop machine and switch the rotating direction of the coil winding machine.
Main components of transformer coil winding machine GDY-3T
Main parameters of transformer coil winding machine GDY-3T
Typical standard specifications of transformer coil winding machine GDY-3T are shown below and the coil winding machine can also be manufactured as requested.
| Central Height: | 1000mm |
| Distance Between Ends: | 2000mm |
| Square Shaft Size: | 50x50x2000mm |
| Winding Speed: | 0 ~ 40rpm |
| Maximum Transverse Length: | 1800mm |
| Counting Range: | 0 ~ 9999.9 |
| Maximum Loading Capacity: | 3000KG |
| Motor Power: | 7.5KW |
| Colour: | Optional |
| Machine Dimension(LxWxH): | 3600x900x1400mm |

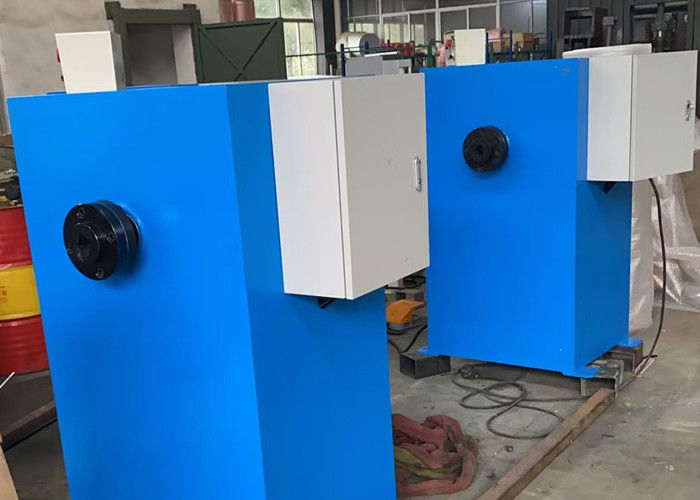

Fig 1: Transformer coil winding machine GDY-3T's full view
Fig 2: Transformer coil winding machine GDY-3T's control panel
