| Name: | Transformer Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Conductor Material: | Copper Or Aluminium Wire | Wire Type: | Flat Wire Or Round Wire |
| HMI: | Touch Screen | Power: | 5.5KW |
| Winding Speed: | 0 ~ 160RPM | Warranty Period: | 12 Months |
| Highlight: | Wingding Transformer Coil Winding Machine,1000mm Transformer Coil Winding Machine,transformer winding machine for coil |
||
Factory Direct Sales Transformer Coil Wingding Machine 1000mm Winding Width
Description of transformer coil winding machine ZPX1000
Transformer coil winding machine ZPX1000 is one kind of transformer making equipment. The transformer coil winding machine can wind both copper wire and aluminium wire to make different sizes of wire coils. These coils can be used in transformers or other similar products. With a wire laying unit, the transformer coil winding machine wind wire automatically. The transformer coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, tension adjustable pay-off unit, pneumatic system, PLC based control system, and servo motors, etc. With HMI, the transformer coil winding machine can be operated easily.
Main components of transformer coil winding machine ZPX1000
1. Main frame
2. Winding unit
3. Automatic wire laying unit
4. Insulation decoiler
5. Electronic control system
6. Pneumatic system
Technical parameters of transformer coil winding machine ZPX1000
Typical standard specifications of transformer coil winding machine ZPX1000 are shown below, however the coil winding machine can also be manufactured as requested.
| Center Height: | 900mm |
| Shaft length: | 1300mm |
| Max. Winding Width: | 1000mm |
| Winding Power: | 5.5Kw |
| Winding Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless speed regulation |
| Max. Flat Wire Size: | 5X12mm |
| Round Wire Diameter: | Ø0.3 ~ 5.0mm |
| Max. Finished Coil OD.: | Ø800mm |
| Max. Loading Capacity: | 700kg |
| Automatic Wire Laying Function: | Min. spread pitch 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Range: | 0 ~ 9999.9 |

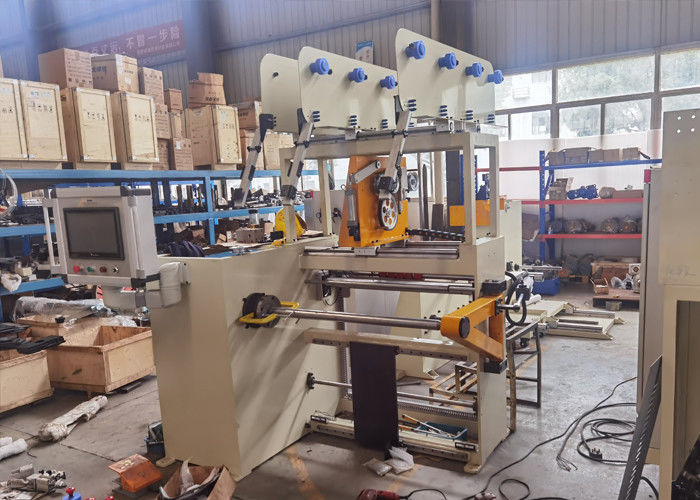

Fig 1: Transformer coil winding machine ZPX1000's front view
Fig 2: Transformer coil winding machine ZPX1000's wire guide driven by sero motor
