| Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Conductor Foil: | Copper Foil And Aluminium Foil | Foil Decoiler: | 2 Sets |
| Power: | 30kw | Winding Speed: | 0 ~ 16 Rpm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Automatic Copper Foil Winding Machine,Two Layers Copper Foil Winding Machine,Automatic Winding Copper Foil Winding Machine |
||
Automatic Copper Foil Winding Machine Winding Two Layers Foil
Introduction of copper foil winding machine BRJ1600-2
Copper foil winding machine BRJ1600-2 is a professional conductor foil winder equipment. The copper foil winding machine can wind both copper foil and aluminium foil to make foil coils for cast resin transformers and other similar products. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foil and one or two layers of insulation paper at once. With TIG welding unit, the copper foil winding machine can weld foil and bus bar together. With HMI and PLC control system, the copper foil winding machine can be operated easily.
Features of copper foil winding machine BRJ1600-2
Main components of copper foil winding machine BRJ1600-2
Technical Parameters of copper foil winding machine BRJ1600-2
Typical standard specifications of copper foil winding machine BRJ1600-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,600mm |
| Max. Finished Coil OD.: | 1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Diameter: | adjustable range Ø400 ~ 520mm |
| Max. Coil Weight: | 2,000KG |
| Welding Mode: | TIG |
| Cutting Mode: | Rolling shear |
| Insulation Decoiler Number: | 2 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 9000Kg |
| Dimension(L x W x H): | 5800 x 3050 x 2500mm |

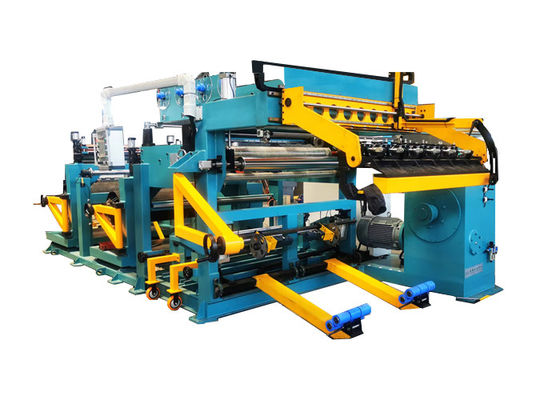

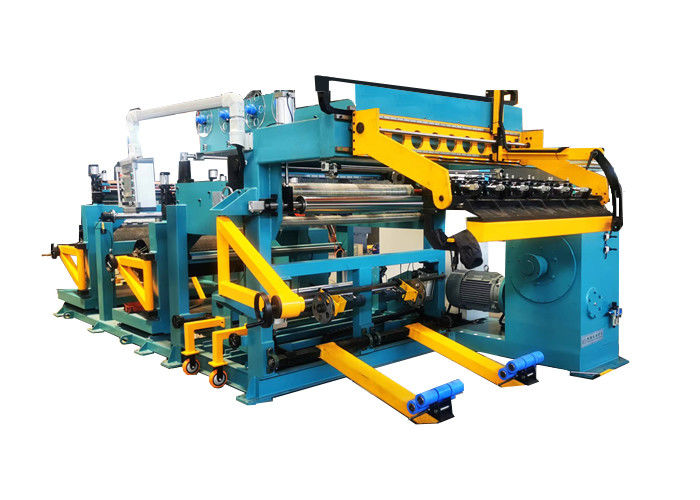

Fig 1: Copper foil winding machine BRJ1600-2's front view
Fig 2: Copper foil winding machine BRJ1600-2's TIG welding unit
