| Product Name: | Slitting Line | Function: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Roll Outer Diameter: | Ø1200mm, Maximum | Roll Inner Diameter: | Ø500mm |
| Sheet Thickness: | 0.23 ~ 0.5mm | Sheet Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Slitting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | Strip Core Slitting Machine,Make Strip Core Slitting Machine,Silicon Steel Core Slitting Machine |
||
Silicon Steel Core Slitter Make Strip Core Slitting Machine
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a professional cutting machine. The core slitting machine is mainly used to slit silicon steel sheet to make strips. With HMI and PLC control system, the core slitting machine can slit different widths of strips through presetting corresponding parameters. The core slitting machine can slit silicon steel sheet with maximum width 1200mm. The slit strips can be used to make transformer core’s legs, yokes and other similar products. With six sets of cutters, the core slitting machine can slit at most five pieces of strips at one time. However, the cutters can be added to slit more strips at one time if needing. With PLC control and HMI, the slitting machine can be operated easily.
Quick details of core slitting machine ZJX1250:
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 40 - 1200 mm |
| Cutting thickness: | 0.23 - 0.5 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 55 kw |

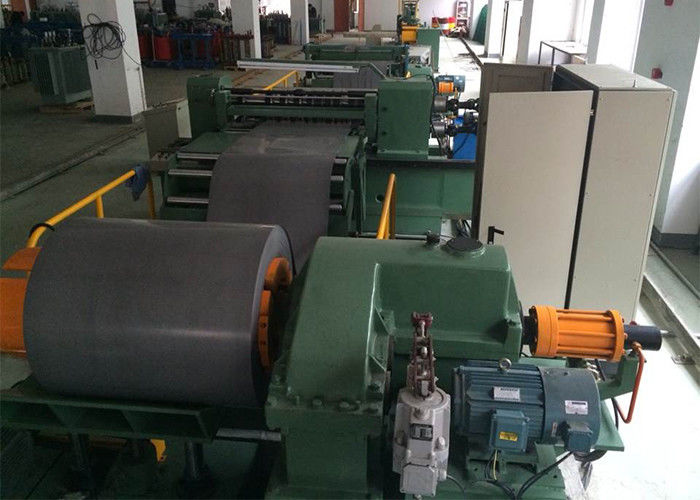

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
