Description of motor coil winding machine MW800

Motor coil winding machine MW800 is a special winder equipment. This kind winding machine is mainly used to wind copper wire or aluminium wire to make motor coils or other similar products. The motor coil winding machine is provided with one counter, with the counter, the motor coil winding machine can count the number of turns when winding wire. The adjustable mold of the motor coil winding machine can be used to mount different winding arbors to make different coils. The motor coil winding machine features slow starting, smooth running and easy operation etc.

Quick details of motor coil winding machine MW800

• Slow starting, when the machine begins to run, the rotating is very slow for sage
• Smooth running, during running, the performance of the machine is very high
• Strong pulling force, with 2.2kw motor, the machine is with a strong pulling force
• High speed, the max winding sped can reach 400 rpm
• Simply structure, with this, the machine features easy maintaining
• Easy operating, it is very easy to operate the machine, just need to input the parameters and press the foot pedal

Main parameters of motor coil winding machine MW800

Typical standard specifications of motor coil winding machine MW800 are shown below and the coil winding machine can also be manufactured as requested.

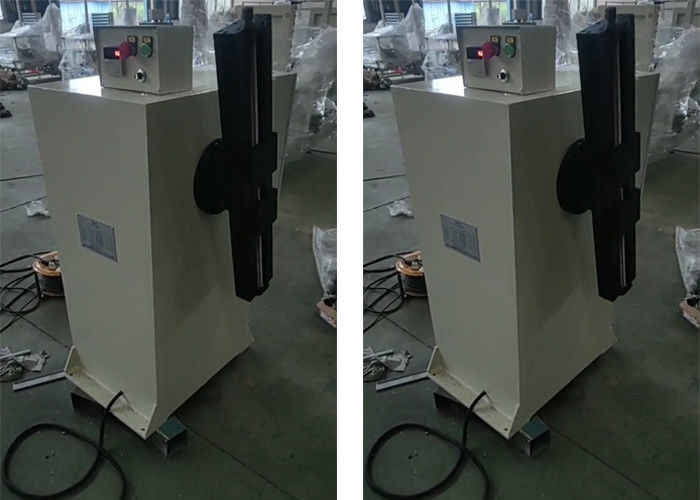

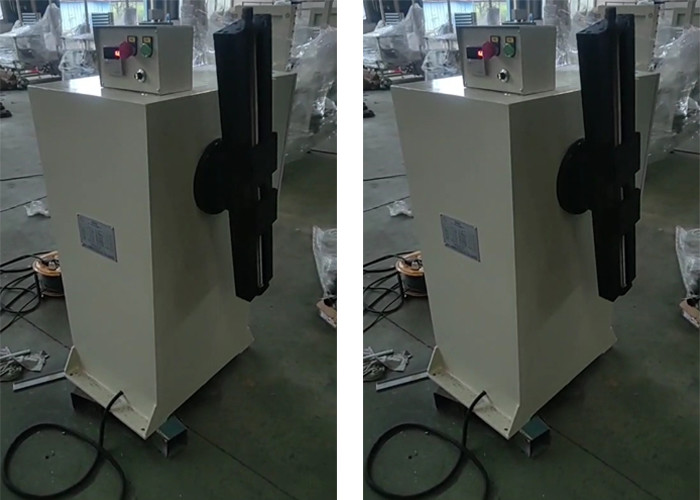

Fig 1: Motor coil winding machine MW800's full view

Fig 2: Motor coil winding machine MW800's control board
