| Name: | Transformer Iron Core Assembly Table | Table Height: | 1000mm |
|---|---|---|---|
| Power: | 1.5kw | Stacking Height: | 400mm |
| Color: | Optional | Warranty Period: | 12 Months |
| Max. Capacity: | 1000kg | Tilting: | Hydraulic Driven |
| Highlight: | Hydraulic Driven Transformer Core Stacking Table,Heavy Duty Transformer Core Stacking Table,Transformer Iron Core Stacking Table Equipment |
||
Hydraulic Driven Transformer Iron Core Stacking Table
Description of transformer core stacking table FZT-1T
Transformer core stacking table FZT-1T is a professional device, which is mainly used to stack different sizes of transformer iron cores’ legs and yokes to make transformer core. The transformer core stacking table can tilt the stacked iron cores up to 90°. The transformer core stacking table adopts an adjustable mode to improve tilting accuracy and speed regulation accuracy. The transformer core stacking table is provided with a linear guide and a hydraulic system for tilting stacked cores. The transformer core stacking table can bear the core with maximum weight 1000kg. The transformer core stacking table features smooth tilting and easy to operate, etc.
Main Components of transformer core stacking table FZT-1T
1. Main frame
2. Hydraulic station
3. Linear guide
Main Parameters of transformer core stacking table FZT-1T
Typical standard specifications of transformer core stacking table FZT-1T are shown below and the core stacking table can be also be manufactured as requested.
| Platform Size: | 1300×1000mm |
| Max Load Capacity: | 1000Kg |
| Stacked Accuracy: | 0.1 ~ 0.2mm |
| Table Height: | 1000mm |
| Driven Mode: | Hydraulic |
| Main Power: | 1.5KW |
| Max. Iron Core Thickness: | 400mm |
| Tilting Speed: | 90°/Min(Stepless speed regulating) |
| Distance Between Columns: | Adjustable |

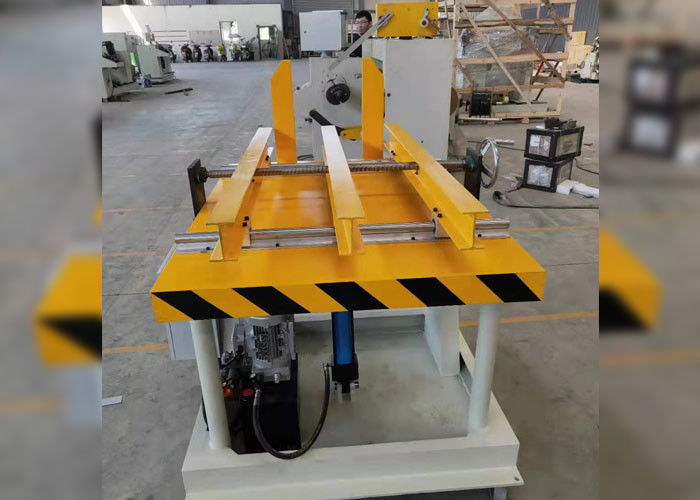

Fig 1: Transformer core stacking table FZT-1T's full view
Fig 2: Transformer core stacking table FZT-1T's hydraulic station
