| Name: | Copper Foil Winding Machine | Function: | Winding Foil Conductor |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Machine Color: | As Requested | Warranty Period: | 12 Months |
| Winding Speed: | 0 ~ 24 Rpm | Power: | 11kw |
| Highlight: | Reactor Foil Winder,Automatic Foil Winder,Automatic Copper Foil Winding Machine |
||
Reactor Foil Winder Automatic Copper Foil Winding Machine
Quick details of copper foil winding machine BRJ800-2-2
Description of copper foil winding machine BRJ800-2-2
Copper foil winding machine BRJ800-2-2 is a professional foil winder equipment for winding reactor coils and other similar products. With two chucks driven by two servo motors, the copper foil winding machine can clamp the iron core and wind foil on the core directly. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, which makes the copper foil winding machine wind one or two layers of copper or aluminium foil conductor and one or two layers of insulation paper at the same time. The copper foil winding machine features slow starting, smooth running and easy operation etc.
Technical parameters of copper foil winding machine BRJ800-2-2
Typical standard specifications of copper foil winding machine BRJ800-2-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 250 ~ 800mm |
| Max. Finished Coil OD.: | Ø850mm |
| Finished Coil Shape: | Round, Rectangular and Oval |
| Conductor Foil Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 ~ 3.0 mm |
| Cu Foil Thickness: | 0.2 ~ 2.0 mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Diameter: | Ø 480 ~ 520mm |
| Max. Coil Weight: | 1,000KG |
| Motor Power: | 11KW |
| Winding Speed: | 0 ~ 24 rpm |
| Welding System: | TIG |
| Insulation Decoiler Number: | 2 sets |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User interface: | 10 inches touch screen |
| Counting Range: | 0 ~ 9999.9 |

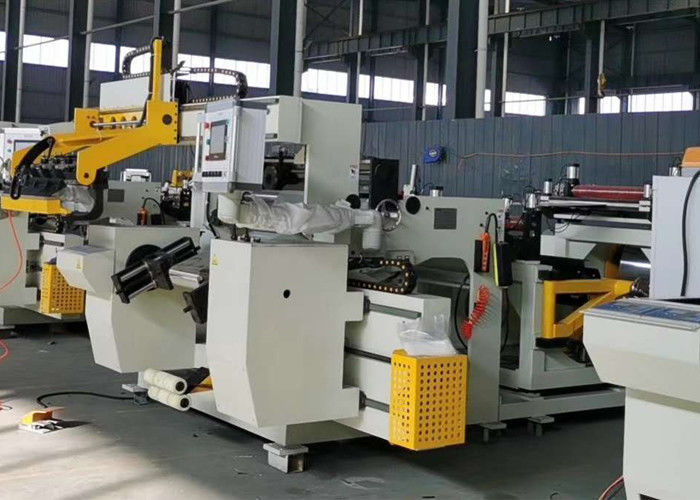

Fig 1: Copper foil winding machine BRJ800-2-2's front view
Fig 2: Copper foil winding machine BRJ800-2-2's back view
