Two Foil Decoilers Automatic Copper Foil Winding Machine
Description of copper foil winding machine BRJ1000-2
Copper foil winding machine BRJ1000-2 is a professional foil winder equipment. The copper foil winding machine can wind conductor foil strip with maximum width 1000mm, such as copper foil and aluminium foil. The copper foil winding machine can wind both copper foil strip with thickness from 0.2 mm to 2.0mm and aluminium foil strip with thickness from 0.3mm to 3.0 mm. The copper foil winding machine is provided with two foil decoilers and two insulation decoilers, which make the copper foil winding machine wind one or two layers of foil strip and one or two layers of insulation paper. With TIG welding unit, the copper foil winding machine can weld bus bar and foil together. The copper foil winding machine features high torque, smooth running and easy operation etc.
Main components of copper foil winding machine BRJ1000-2
Technical Parameters of copper foil winding machine BRJ1000-2
Typical standard specifications of BRJ1000-2 are shown below and the foil winding machine can also be manufactured as requested.
| Max. foil width: | 1,000mm |
| Max. Finished Coil OD: | Ø1,000mm |
| Conductor Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Diameter: | adjustable range Ø480 - 520mm |
| Winding Power: | 15KW |
| Winding Speed: | 0 ~ 20rpm |
| Welding: | TIG |
| Cutting: | Electric rolling shear |
| Insulation Decoiler Shaft: | Expandable (pneumatic open/close action) |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

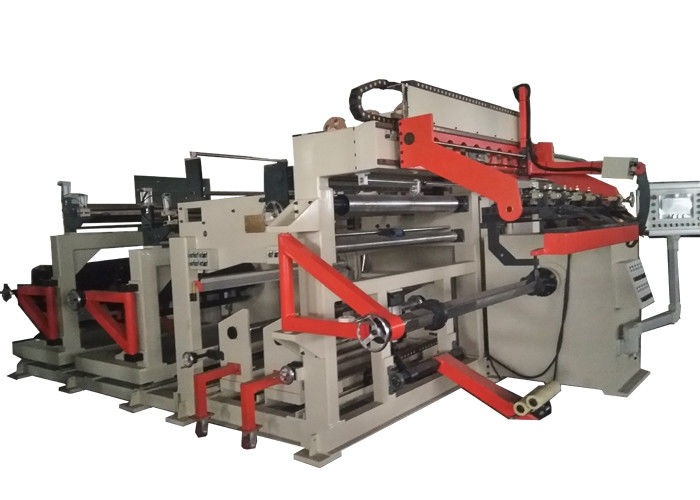

Fig 1: Copper foil winding machine BRJ1000-2's front view
Fig 2: Copper foil winding machine BRJ1000-2's welding unit
