| Name: | Coil Winding Machine | Winding Width: | 1000mm, Maximum |
|---|---|---|---|
| Winding Power: | 5.5kw | Winding Speed: | 0 ~ 160rpm |
| Wire Guide: | Driven By Servo Motor | Warranty: | 12 Months |
| Power Supply: | AC 3-phase 380V 50Hz | Wire Diameter: | 0.3 ~ 5.0mm |
| Highlight: | Automatic Coil Winder Coiling Machine,Automatic Coil Winding Machine,Copper Wire Winder Coiling Machine |
||
Copper Wire Winder Coiling Machine Automatic Coil Winding Machine
Description of automatic coil winding machine ZPX1000
Automatic coil winding machine ZPX1000 is a special winder equipment, which is mainly used to wind copper wire or aluminium wire to make wire coils. These coils can be used in transformers and other similar products. The automatic coil winding machine is provided with a wire guide, and the wire guide is driven by a servo motor. The maximum winding width of the automatic coil winding machine is 1000mm. With HMI and PLC control system, the automatic coil winding machine can be operated through a touch screen.
Features of automatic coil winding machine ZPX1000
Main parameters of automatic coil winding machine ZPX1000
The following is the standard specifications of the automatic coil winding machine ZPX1000 and the automatic coil winding machine can also be manufactured as requested.
| Winding Shaft Center Height: | 900mm |
| Winding Shaft Size: | 40x40x1300mm |
| Maximum Winding Width: | 1000mm |
| Winding Power: | 5.5kw |
| Rotating Speed: | 0 ~ 160 rpm |
| Speed Regulation: | stepless |
| Max. Flat Wire Size: | 5mm x 12mm |
| Round Wire Diameter: | Φ0.3mm ~ Φ5.0mm |
| Maximum wound Coil OD.: | Φ800mm |
| Maximum Capacity: | 800kg |
| Minimum Spread Pitch: | 0.01mm |
| Counting Mode: | 5-digit counting |
| Counting Turn Range: | 0 ~ 9999.9 |

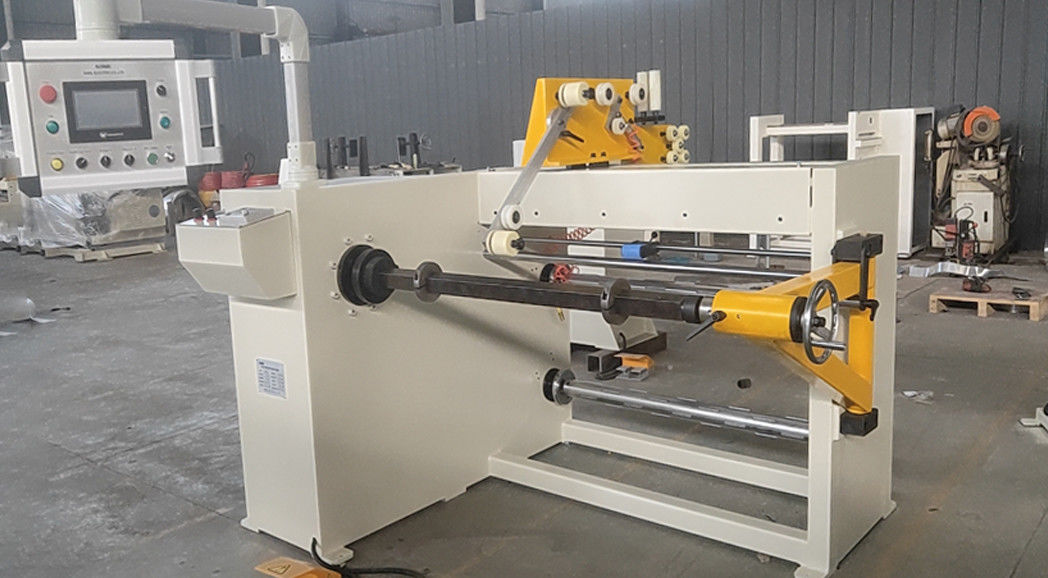

Fig 1: Automatic coil winding machine ZPX1000's front view
Fig 2: Automatic coil winding machine ZPX1000's wire guide
