| Name: | Slitting Line | Usage: | Slit Silicon Steel Sheet |
|---|---|---|---|
| Material Outer Diameter: | Ø1200mm, Maximum | Material Inner Diameter: | Ø500mm |
| Cutting Thickness: | 0.23 ~ 0.5mm | Cutting Width: | 500 ~ 1250mm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Cutting Accuracy: | ±0.1mm | Material: | Silicon Steel Sheet |
| Highlight: | Silicon Steel Core Slitting Machine,Transformer Making Equipment Slitting Machine,Core Slitting Machine |
||
Transformer Making Equipment Silicon Steel Core Slitting Machine
Description of core slitting machine ZJX1250
Core slitting machine ZJX1250 is a professional cutting machine to slit silicon steel sheet. The core slitting machine can slit silicon steel sheet to make different width strips. These strips can be cut to make transformer core’s legs and yokes. The core slitting machine is provided with HMI and PLC control system, which make the core slitting machine be operated easily. The core slitting machine is provided with six sets of cutters, which make the core slitting machine slit at most five pieces of strips at one time. However, the cutters can be added to slit more strips at one time if needing.
Quick details of core slitting machine ZJX1250:
Main components of core slitting machine ZJX1250
1. Trolley for loading and unloading material
2. Decoiler
3. Material receiver
4. Movable guide device
5. Slitting device
6. Tensioner
7. Winder
8. Hydraulic station and pneumatic system
9. Electrical control cabinet and console
Main parameters of core slitting machine ZJX1250
Typical standard specifications of core slitting machine ZJX1250 are shown below and the slitting machine can also be manufactured as requested.
| Decoiler expanding range: | Ø470 - 520mm |
| Coil ID: | Ø495 - 510mm |
| Maximum coil OD: | Ø1200mm |
| Maximum coil weight: | 5000kg |
| Cutting width: | 40 - 1200 mm |
| Cutting thickness: | 0.23 - 0.5 mm |
| Cutting width tolerance: | ±0.10mm |
| Cutter: | 6 sets |
| Feeding speed: | 120 m/min |
| Cutting burring: | ≤0.02 mm |
| Power: | 55 kw |

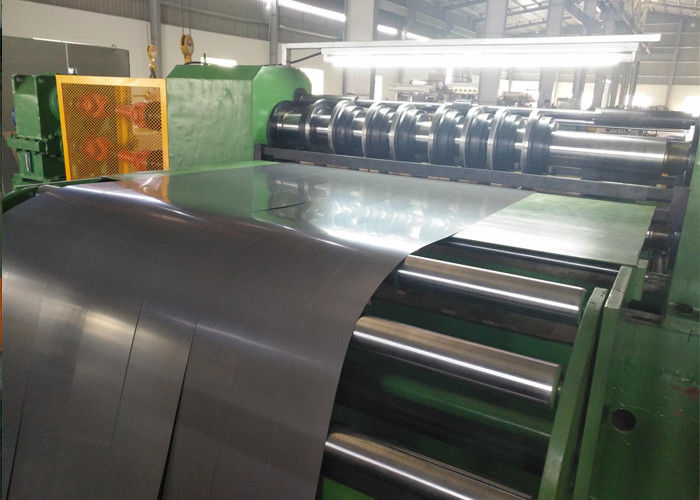

Fig 1: Core slitting machine ZJX1250's front view
Fig 2: Core slitting machine ZJX1250's winder
