Product Details:
Payment & Shipping Terms:
|
| Product Name: | Transformer Core Stacking Table | Usage: | Stacking Silicon Steel Sheet |
|---|---|---|---|
| Table Size: | 1500x1200mm | Working Height: | 1000mm |
| Maximum Capacity: | 3000kg | Tilting: | Hydraulic Driven |
| Color: | As Requested | Warranty: | 12 Months |
| Highlight: | Stacking Platform Transformer Core Stacking Table,Platform Transformer Core Stacking Table,Tilting Platform Transformer Core Stacking Table |
||
Stacking And Tilting Platform Transformer Core Stacking Table
Description of transformer core stacking table FZT-3T
Transformer core stacking table FZT-3T is a special transformer core assembly equipment. The transformer iron core stacking table is mainly used to stack transformer iron core and the distance between beams can be adjusted for different sizes of cores. The transformer core stacking table is provided with a hydraulic station for tilting the stacked core. After the core is stacked, the transformer core stacking table can flip up the stacked core up to 90°, which make the stacked core be taken away from the stacking table easily. The transformer core stacking table is with a hand held controller. The transformer core stacking table features smooth running and easy operation, etc.
Quick details of transformer core stacking table FZT-3T
Main components of transformer core stacking table FZT-3T
Main Parameters of transformer core stacking table FZT-3T
Typical standard specifications of transformer core stacking table FZT-3T are shown below and the transformer core stacking table can also be manufactured as requested.
| No. | Item | FZT-3T |
| 1 | Table Size(LxW): | 1500×1200mm |
| 2 | Table Height: | 1000mm |
| 3 | Max. Capacity: | 3000Kg |
| 4 | Max. Stacking Thickness: | 900mm |
| 5 | Tilting Mode: | Hydraulic |
| 6 | Tilting Speed: | 90°/Min(Stepless speed regulating) |
| 7 | Distance Between Columns: | Adjustable |
| 8 | Main Power: | 2.2KW |
| 9 | Warranty: | 12 months |

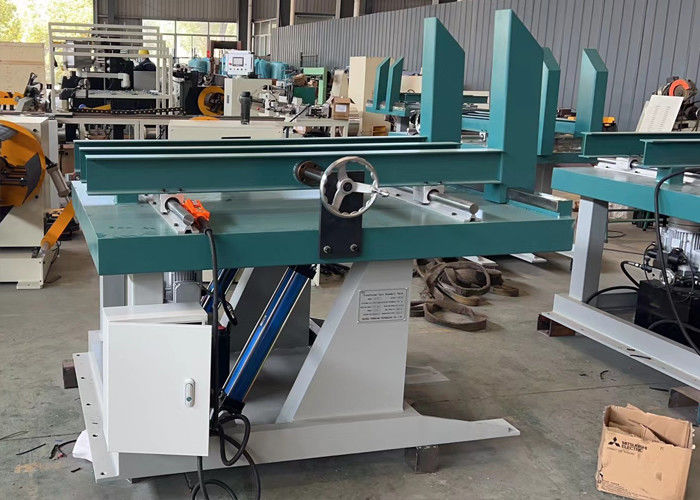

Fig 1: Transformer core stacking table FZT-3T's full view
Fig 2: Transformer core stacking table FZT-3T's hand wheel
