| Name: | Transformer Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Max. Foil Width: | 1000mm | Machine Color: | As Per Requirements |
| Rotating Motor Power: | 15kw | Speed: | 0 ~ 20rpm |
| Highlight: | Automatic Transformer Foil Winding Machine,LV Winder Transformer Foil Winding Machine,Customizable Transformer Foil Winding Machine |
||
LV Winder Automatic Transformer Foil Winding Machine
Description of transformer foil winding machine BRJ1000-2
Transformer foil winding machine BRJ1000-2 is a professional winder equipment for winding conductor foil coils. This kind of coils can be used in dry transformers and other similar products. The transformer foil winding machine is provided with two foil decoilers and two insulation decoilers, which make the transformer foil winding machine wind one or two layers of copper foil and one or two layers of insulation paper. With 15kw main winding motor, the transformer foil winding machine is with big torque to wind conductor foil. The transformer foil winding machine is provided with TIG welding unit for welding foil and busbar together. With PLC and HMI, the transformer foil winding machine can be operated easily.
Quick details of transformer foil winding machine BRJ1000-2
1) Two foil decoilers
2) Two insulation decoilers
3) End-fill strip holder
4) Cleaning device
5) Foil deburring device
6) Roll shear
7) Edge alignment device
8) TIG welding unit
Technical parameters of transformer foil winding machine BRJ1000-2
Typical standard specifications of transformer foil winding machine BRJ1000-2 are shown below and the foil winding machine can also be manufactured as requested.
| Foil Width: | 200 ~ 1,000mm |
| Max Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 sets |
| Foil Decoiler Expanding Range: | Ø480 ~ 520mm |
| Winding Shaft Size: | 80×80×1350 mm |
| Shear: | Electric disc shear |
| Foil Deburring Device: | Pneumatic control |
| Cleaning Device: | Pneumatic control |
| Insulation Decoiler Number: | 2 sets |
| Max Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø76mm |
| Insulation Decoiler Shaft: | pneumatic open/close action |
| End-fill Strip Holder: | 8 pcs |
| Edge Alignment Device: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| Winding Power: | 15kw |
| Winding Speed: | 0 ~ 20rpm |
| Counting Range: | 0 ~ 9999.9 |

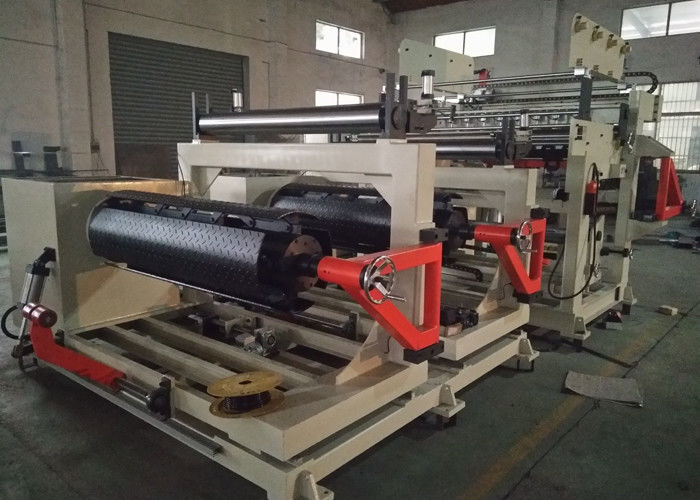

Fig 1: Transformer foil winding machine BRJ1000-2's front view
Fig 2: Transformer foil winding machine BRJ1000-2's back view
