Product Details:
Payment & Shipping Terms:
|
| Nname: | Transformer Coil Winding Machine | Display: | Digital |
|---|---|---|---|
| Usage: | Winding Wire Coil | Motor Power: | 7.5KW |
| Operation Mode: | Semi Automatic | Power Supply: | As Requested |
| Rotating Speed: | 0 ~ 40rpm | Warranty: | 12 Months |
| Highlight: | Semi Automatic Transformer Coil Winding Machine,Automatic Transformer Coil Winding Machine,Wire Winder Transformer Coil Winding Machine |
||
Semi Automatic Wire Winder Transformer Coil Winding Machine
Description of transformer coil winding machine GDY-3T
Transformer coil winding machine GDY-3T is a special winder equipment. This kind of transformer coil winding machine is semi automatic winder. With a counter, the transformer coil winding machine can count the number of turns when winding. The foot pedal is also provided for stop and start running the transformer coil winding machine. The transformer coil winding machine features slow starting, smooth running, big torque, easy operation, etc.
Main components of transformer coil winding machine GDY-3T
Main parameters of transformer coil winding machine GDY-3T
Typical standard specifications of transformer coil winding machine GDY-3T are shown below and the coil winding machine can also be manufactured as requested.
| Central Height: | 1000mm |
| Distance Between Ends: | 2000mm |
| Square Shaft Size: | 50x50x2000mm |
| Winding Speed: | 0 ~ 40rpm |
| Maximum Transverse Length: | 1800mm |
| Counting Range: | 0 ~ 9999.9 |
| Maximum Loading Capacity: | 3000KG |
| Motor Power: | 7.5KW |
| Colour: | Optional |
| Machine Dimension(LxWxH): | 3600x900x1400mm |

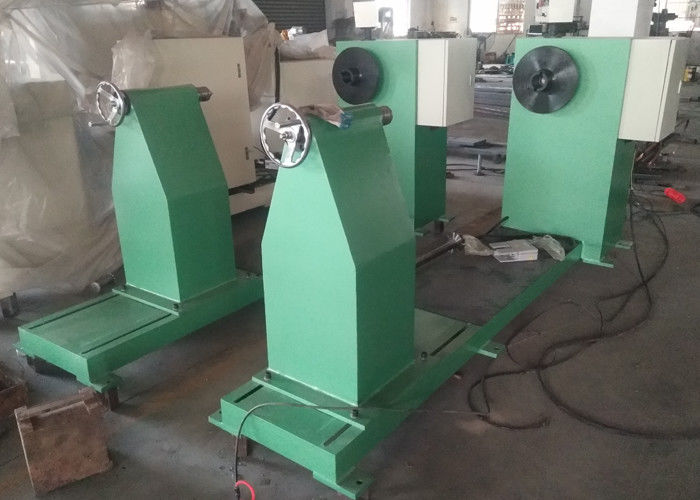

Fig 1: Transformer coil winding machine GDY-3T's full view
Fig 2: Transformer coil winding machine GDY-3T's control panel
