| Name: | Transformer Foil Winding Machine | Usage: | Winding Foil Coil |
|---|---|---|---|
| Cu Foil Thickness: | 0.2 ~ 2.0mm | Al Foil Thickness: | 0.3 ~ 3.0mm |
| Welding Mode: | TIG | Welding Machine: | 1 Set |
| Motor Power: | 22kw | Warranty Period: | 12 Months |
| Highlight: | 22kw Copper Foil Winding Machine,TIG Copper Foil Winding Machine |
||
Máquina de bobinado de láminas Copper Foil Winding Machine
Description of copper foil winding machine BRJ1200-2
Copper foil winding machine BRJ1200-2 is a special winder equipment for winding low voltage transformer coils. The foil winding machine can wind both copper foil with thickness from 0.2mm to 2.0mm and aluminium foil with thickness from 0.3mm to 3.0mm. The copper foil winding machine is provided with two foil decoilers, which make the copper foil winding machine be able to winding one or two layers of foil at the same time. The copper foil winding machine is also provided with control system based on PLC and HMI. The copper foil winding machine features slow starting, smooth running, high automation and easy operation etc.
Main components of copper foil winding machine BRJ1200-2
Technical parameters of copper foil winding machine BRJ1200-2
Typical standard specifications of copper foil winding machine BRJ1200-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Foil width: | 200 - 1,200mm |
| Maxinum Wounded Coil OD: | Ø1,000mm |
| Conductor Material: | Copper or Aluminum foil |
| Al Foil Thickness: | 0.3 - 3.0 mm |
| Cu Foil Thickness: | 0.2 - 2.0 mm |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Expanding Range: | Ø 420-520mm |
| Winding Power: | 22KW |
| Welding Mode: | TIG |
| Cutting Mode: | Electric rolling shear |
| Insulation Decoiler: | 2 pcs |
| End-fill Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| HMI Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 - 9999.9 |

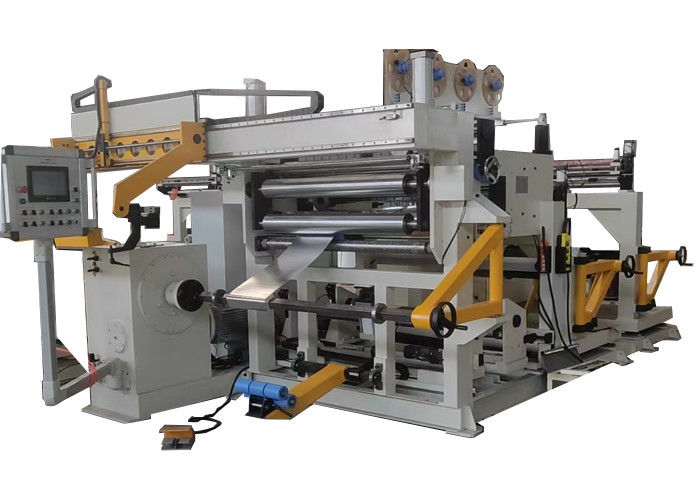

Fig 1: Copper foil winding machine BRJ1200-2's side view

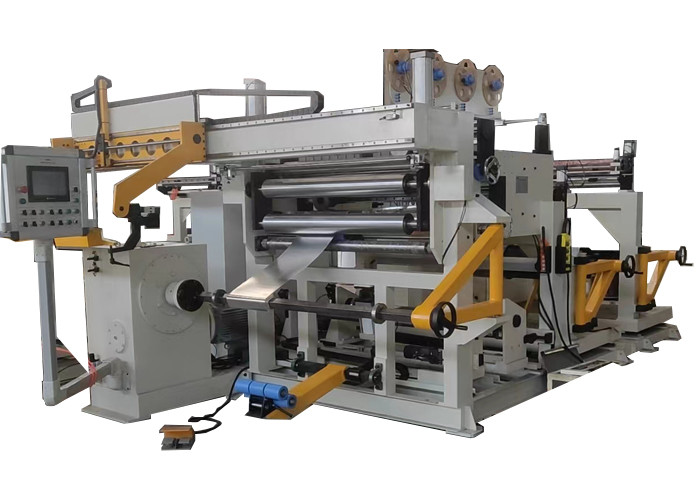

Fig 2: Copper foil winding machine BRJ1200-2's back view
