| Name: | Copper Foil Winding Machine | Function: | Winding Foil Coil |
|---|---|---|---|
| Conductor: | Copper Foil And Aluminium Foil | Foil Decoiler: | 2 Sets |
| Rotating Power: | 22kw | Rotating Speed: | 0 ~ 16 Rpm |
| Machine Color: | As Requested | Warranty: | 12 Months |
| Highlight: | TIG Copper Foil Winding Machine,Aluminium Foil Copper Foil Winding Machine,16 rpm Copper Foil Winding Machine |
||
Factory Direct Sales TIG Welding Copper Foil Winding Machine
Description of copper foil winding machine BRJ1400-2
Copper foil winding machine BRJ1400-2 is a professional conductor foil winder equipment. The copper foil winding machine is provided with TIG welding unit, which makes the copper foil winding machine be able to weld conduct foil and bus bar together. Both copper foil and aluminium foil can be wound with this kind of copper foil winding machine. With two foil decoilers and two insulation decoilers, the copper foil winding machine can wind one or two layers of foil and one or two layer of insulation paper. The copper foil winding machine features easy operation, high automation and so on.
Main components of copper foil winding machine BRJ1400-2
1. Main frame,
2. Winding unit,
3. Foil decoiler,
4. Insulation decoiler,
5. End-filling strip feeder,
6. Cleaning system,
7. Cutting system,
8. Foil deburring system,
Technical parameters of copper foil winding machine BRJ1400-2
Typical standard specifications of copper foil winding machine BRJ1400-2 are shown below and the copper foil winding machine can also be manufactured as requested.
| Max. Foil Width: | 1,400mm |
| Max. Finished Coil OD.: | Ø1,000mm |
| Finished Coil Shape: | oval, round and rectangular,etc. |
| Conductor Foil Material: | Copper or Aluminum |
| Conductor Material OD.: | Ø1,000mm |
| Conductor Material ID.: | Ø500mm |
| Foil Decoiler Number: | 2 pcs |
| Foil Decoiler Diameter: | adjustable range Ø480 ~ 520mm |
| Max. Coil Weight: | 2,000KG |
| Welding Mode: | TIG |
| Cutting Mode: | Rolling shear |
| Insulation Decoiler Number: | 2 pcs |
| End-filling Strip Feeder: | 8 pcs |
| Edge Alignment System: | Photoelectric sensing |
| Rectification Precision: | ±0.5mm |
| Electronic Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Total Weight: | 8000Kg |
| Dimension(L x W x H): | 5800 x 2850 x 2500mm |

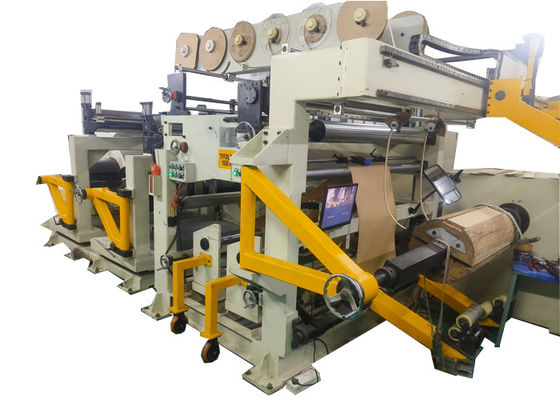

Fig 1: Copper foil winding machine BRJ1600-2's front view
Fig 2: Copper foil winding machine BRJ1600-2's insulation decoiler
