| Product Name: | Automatic Coil Winding Machine | Usage: | Winding Wire Coil |
|---|---|---|---|
| Conductor: | Copper Or Aluminium Wires | Color: | Optional |
| Round Wire Size: | Φ0.3 ~ 5.0mm | Max Flat Wire: | 5x12mm |
| Motor Power: | 7.5kw | Rotating Speed: | 0 ~ 60rpm |
| Highlight: | 7.5kw Automatic Coil Winding Machine,7.5kw Coil Winding Machine,Machine For Winding Wire Coils |
||
Máquina de bobinado Automatic Coil Winding Machine Wire Winder
Description of automatic coil winding machine ZPX1400
Automatic coil winding machine ZPX1400 is a special wire winder. This kind of coil winding machine can be used to wind both copper wire and aluminium wire to make wire coils. The wound coils can be used in transformers and other similar products. With a potentiometer, the automatic coil winding machine’s winding speed can be adjusted manually. The control system of the automatic coil winding machine is based on PLC. With HMI, it is very easy to operate the automatic coil winding machine. The foot pedal of the automatic coil winding machine can stop or start the machine.
Main features of automatic coil winding machine ZPX1400
Technical parameters of automatic coil winding machine ZPX1400
Typical standard specifications of automatic coil winding machine ZPX1400 are shown below and the machine can also be manufactured as requested.
| Center Height: | 900mm |
| Winding Shaft Size: | 50x50x1700mm |
| Insulation Decoiler Quantity: | 1 pc |
| Winding Power: | 7.5Kw |
| Winding Speed: | 0 ~ 60 Rpm |
| Speed Regulation: | stepless speed regulation |
| Maximum Rectangular Wire Size: | 5x14mm |
| Round Wire Diameter: | Φ0.3 ~ 5.0mm |
| Maximum Wound Coil Height: | 1400mm |
| Maximum Coil Weight: | 1000kg |
| Counting Mode: | 5-digit counting |
| Max. Turns Preset Number: | 9999.9 |
| Counting Range: | 0 ～ 9999.9 |
Fig 1: Automatic coil winding machine ZPX1400's front view

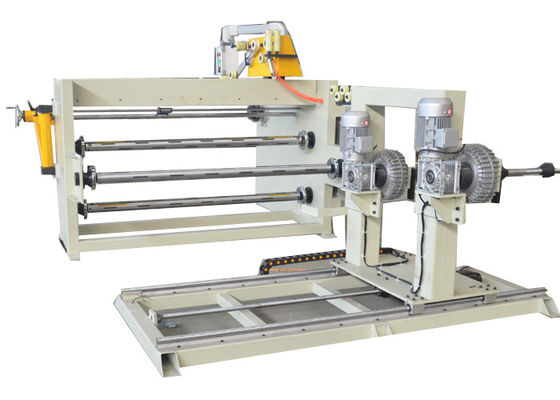

Fig 2: Automatic coil winding machine ZPX1400's insulation decoiler
