| Name: | Coil Winding Machine | Function: | Winding Wire Coil |
|---|---|---|---|
| Motor Power: | 4kw | Rotating Speed: | 0 ~ 160rpm |
| Conductor: | Cu Wire Or Al Wire | Wire Type: | Flat Wire Or Round Wire |
| Round Wire Size: | Ø0.3mm ~ 4.0mm | Warranty Period: | 12 Months |
| Highlight: | 4.0mm Copper Wire Winding Machine,Flat Copper Wire Winding Machine,4 Head Automatic Coil Winding Machine |
||
4-head Copper Wire devanadera Autoamtic Coil Winding Machine
Description of automatic coil winding machine ZPX150-4
Automatic coil winding machine ZPX150-4 is one kind of high effective wire coil winder equipment. With a 4-head wire guide, the automatic coil winding machine can be used to wind four coils at once. The wire guide is driven by servo motor, which makes the coil winding machine wind wire automatically. The automatic coil winding machine is provided with a control system based on PLC and HMI, which makes the automatic coil winding machine be with high automation and easy operation, etc. The atuomaitc coil winding machine features slow starting, smooth running, high effective and easy operation etc.
Main components of automatic coil winding machine ZPX150-4
1. Main steel frame, it is welded with steel
2. Main winding unit, including winding motor and winding shaft
3. Automatic wire laying unit, driven by 750w servo motor
4. PLC based control system,
5. Pneumatic system
6. Servo motor
7. Foot pedal
Technical parameters of automatic coil winding machine ZPX150-4
Typical standard specifications of automatic coil winding machine ZPX150-4 are shown below and the coil winding machine can also be manufactured as requested.
| Center Height: | 900 mm |
| Square Shaft Size: | 40x40mm |
| Round Wire Diameter: | Ø0.3 ~ 4.0 mm |
| Max. Flat Wire Size: | 3x8 mm |
| Finished Coil ID.: | Depends on your mold (shaft size 40*40 mm) |
| Max. Finished Coil OD.: | Ø400 mm |
| Max. Each Coil Length: | 150 mm |
| Winding Motor Power: | 4kw |
| Winding Speed: | 0 ~ 200 rpm |
| Winding Speed Regulation: | Variable frequency and stepless speed regulation |
| Control system: | PLC |
| Spread Pitch: | Min. step: 0.01 mm |
| Counting Mode: | 5-digit counting, |
| Max. Turns Number Preset: | 9999.9 |

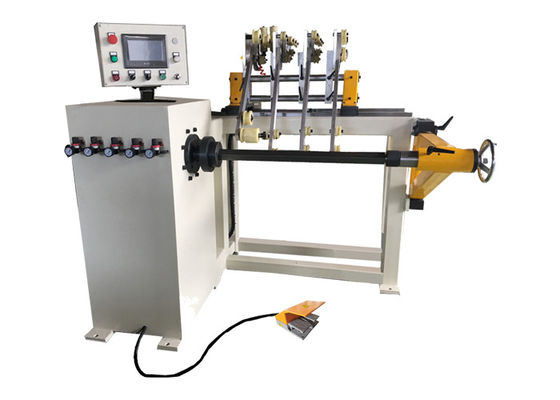

Fig 1: Automatic coil winding machine ZPX150-4's full view
Fig 2: Automatic coil winding machine ZPX150-4's side view
