| Product Name: | Transformer Core Cutting Machine | Cutting Function: | Step Lap |
|---|---|---|---|
| Strip Thickness: | 0.23 ~ 0.35mm | Strip Width: | 40 ~ 300mm |
| Feeding Speed: | 120m/min | Warranty Period: | 12 Months |
| Total Power: | 13 Kw | Machine Color: | As Requested |
| Highlight: | Automatic Transformer Core Cutting Machine,Automatic transformer core cutting,transformer core cutting Automatic |
||
Stepping Cut To Length Automatic Transformer Core Cutting Machine
Description of transformer core cutting machine HJX300-LLB
Transformer core cutting machine HJX300-LLB is a professional cutter equipment. The transformer core cutting machine is mainly for cutting silicon steel strip to make transformer core’s legs or yokes and other similar products. This kind of transformer core cutting machine is with stepping function. With a control system based on PLC, the transformer core cutting machine can cut the silicon steel sheet automatically according to the parameters preset. The punching and cutting actions are driven by servo motors, which guarantees the high efficiency, high precision, low noise and low failure rate. It is very easy to operate the cutting machine.
Quick details of transformer core cutting machine HJX300-LLB
Main parameters of transformer core cutting machine HJX300-LLB
The standard specifications of transformer core cutting machine HJX300-LLB is shown below and the cutting machine can also be manufactured as requested.
| Technical Specifications | HJX300-LLB |
| Sheet thickness | 0.23 ~ 0.35 mm |
| Sheet width | 40 ~ 300 mm |
| Cutting length | 350 ~ 9999 mm |
| Feeding speed | 120 m/min |
| Cutting angle accuracy | ±0.025° |
| Cutting length accuracy | ±0.1 mm |
| Cutting burring | ≤0.02 mm |
| Installation capacity | 13 kw |

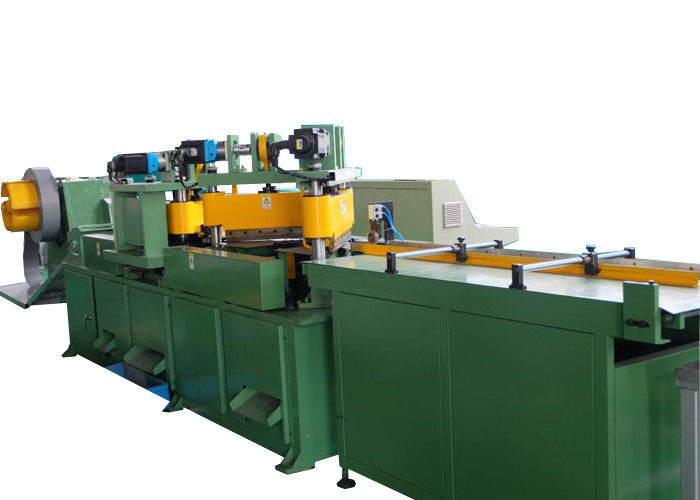

Fig 1: Transformer core cutting machine HJX300-LLB's full view

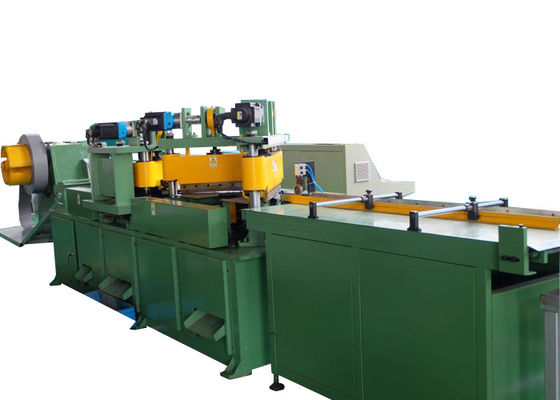

Fig 2: Transformer core cutting machine HJX300-LLB's side view
