Product Details:
Payment & Shipping Terms:
|
| Name: | Lap Core Stacking Table | Usage: | Stacking Silicon Steel Sheet |
|---|---|---|---|
| Platform Height: | 850mm | Loading Capacity: | 5000kg, Maximum |
| Platform Stroke: | 500mm, Maximum | Warranty: | 12 Months |
| Table Color: | As Requested | Motor Power: | 3kw |
| Highlight: | Stacking Transformer Core Table,Amorphous Transformer Core Stacking Table,5000kg Transformer Core Stacking Table |
||
Amorphous Transformer Core Stacking Table
Description of transformer core stacking table ZPT-5T
Transformer core stacking table ZPT-5T is a special stacking equipment for stacking lap cores. The kind of stacked core can be used in amorphous transformers and other similar products. The amorphous transformer core stacking table is provided with hydraulic station and hydraulic cylinder, which is for lifting and flip up the stacked core with maximum height 5000kg. With a hand held controller, the transformer core stacking table can be operated easily. The transformer core stacking table features smooth running, easy operation and so on.
Quick details of transformer core stacking table ZPT-5T
Main Parameters of transformer core stacking table ZPT-5T
Typical standard specifications of transformer core stacking table ZPT-5T are shown below and the stacking table can also be manufactured as requested.
| Working Height: | 850mm |
| Applicable Product Size: |
L:1500 ~ 2200mm W:360 ~ 1000mm H:400 ~ 900 |
| Lifting Platform Capacity (rated): | 5000Kg |
| Lifting Platform Stroke: | 500mm |
| Lifting Speed: | 40mm/s |
| Total Power: | 3Kw |
| Total Weight | 1500Kg |
| Applicable Transformer capacity: | 30KVA-2000KVA |
| Rotating Angle: | 90° |
| Hydraulic Working Pressure: | 21MPa |

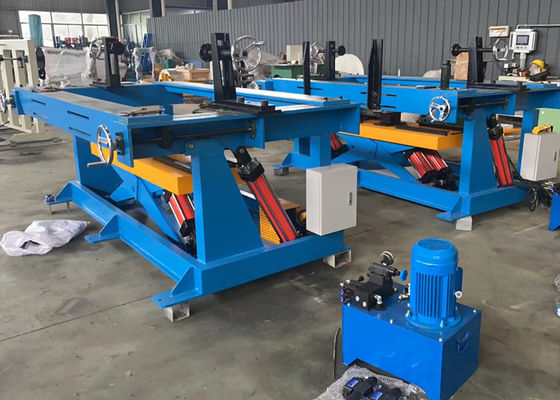

Fig 1: Transformer core stacking table ZPT-5T's full view
Fig 2: Transformer core stacking table ZPT-5T's tilting
